Setting up the Belkin router's Intellistream QoS feature using the web-based setup

Intellistream is a feature of Belkin routers that prioritizes video, Voice over IP (VoIP) and gaming traffic for a better online entertainment experience.

For example, two (2) users are connected to the router at the same time: one is streaming videos while the other is downloading music.  Using Intellistream, your Belkin router will provide priority to video streaming resulting to faster performance.

NOTE:  Prioritization of software updates like Bittorrent/FTP downloads will remain unchanged.  To avoid interference with your videos, it is recommended to schedule your software updates.

Follow the steps below to know how to set up Intellistream Quality of Service (QoS) on your Belkin router.  For steps on how to set up Intellistream using the Dashboard, click here.


Step 1:
On your computer, open a web browser like Internet Explorer® or Mozilla Firefox®.

Step 2:
In the address bar, type "192.168.2.1" and press [Enter].  You will be directed to the router's web-based setup page.


Step 3:
Click Login on the upper-right corner.



Step 4:
Once prompted to log in, leave the Password field blank and click Submit.



Step 5:
Under Media Features, click Intellistream.




You should now be on the Intellistream page and ready to do the setup.

NOTE:  Intellistream features may vary depending on your router.

Enabling Intellistream QoS

To enable Intellistream QoS, you need to determine the upload and download speed of your network.  There are two (2) ways to do this:

Run a Speed Test

Step 1:
Click Run a Speed Test.

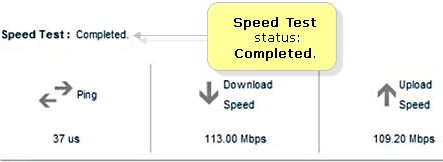

You will see a page that shows the speed test status.


Step 2:
Take note of the Download Speed and Upload Speed values once the Speed Test status is Completed.

User-added image

NOTE:  If your download speed is greater than 70 Mbps, Intellistream QoS will only improve your uploading experience.

Step 3:
Click Refresh to restart the speed test.  Click Apply Changes to save your settings.


The Intellistream QoS feature will be enabled.

Manual Setup


Step 1:
Click Manually Enter to manually set your Internet speed.  If you do not know the Download and Upload values, contact your ISP.


Step 2:
Once prompted for Speed Test, enter your Download and Upload speeds.

User-added image

Step 3:
Select Apply Changes.

The Intellistream QoS feature will be enabled.

IMPORTANT:  Do NOT reset or turn OFF your router while the feature is being enabled.
