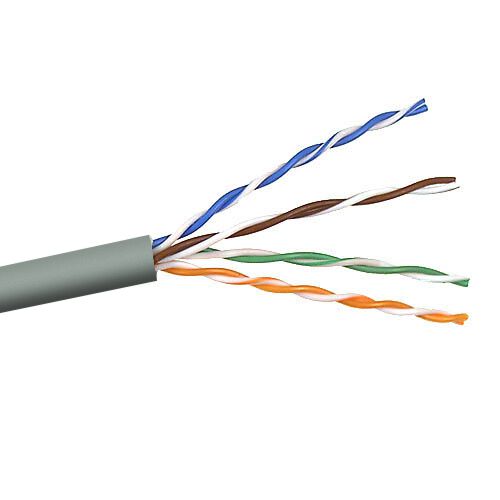

CAT5e Solid Bulk Cable
SKU: A7L504-1000
$78 OFF
Fast and free shipping
30-Day money back guarantee
24/7 Customer support
Sale
$78 OFF
- Only a few left! In Stock
Cable Characteristic
- Unshielded twisted pair (UTP)
Cable Type
- Bulk cable - CAT 5e
Characteristic Impedence
- 100±15Ω @ 1 ~ 100MHz
Conductor Construction
- Solid Bare Copper
Conductor Resistance
- 89.2Ω/km/20°C max
Conductor Size
- 24AWG x 4pairs
Dielectric Strength
- AC 1.75kV/0.15sec
Flame Retardant Test
- CM
Insulation Material
- HDPE
Jacket Diameter
- 5.3±0.15mm
Jacket Material
- PVC
Mutual Capacitance
- 56pF/m max
Propagation Delay
- 538nS/100m max @ 100MHz
Spark Test
- AC 1.75kV/0.15sec
Standards Compliance
- ISO/IEC 11801; TIA/EIA-568-B.2
Structural Return Loss
- 19.0dB min at 100MHz
This CAT5e Horizontal UTP PVC Bulk Cable is used to connect a network outlet with a patch panel. This Cable consists of eight solid 24AWG wires, and is suitable for 10/100Base-T networks.
