Setting up the Belkin Wi-Fi Range Extender wirelessly


The Belkin Wi-Fi Range Extenders are devices that act as repeaters for the router's wireless signal. They can be set up without using cables and wires.  The steps below will guide you on how to set up your range extender wirelessly

Before you begin, ensure that you have the following:
  • A Belkin Wi-Fi Range Extender.
  • An existing Wi-Fi® network and its wireless router's network name (SSID) and wireless password.

    QUICK TIP:  If you are using a dual-band router, secure the SSID and wireless password of both the 2.4 GHz and 5 GHz network bands.

  • A Wi-Fi-capable device (e.g., computer, tablet, smartphone).

NOTE:  Details on the troubleshooting steps and images may vary depending on the wireless devices you are using.  In the examples shown below, an iPad Air® was used to set up a Belkin Dual-Band Wireless Range Extender.

Step 1:
Plug in your range extender into a power outlet that is within the range of your router's wireless network.


User-added image

Step 2:
Using your Wi-Fi-capable device, locate and connect to the Belkin.setup network.

NOTE:  If you are unable to see this network, you may need to reset the range extender.  To do this, simply press the range extender's reset button for at least 10 seconds while it is turned ON.  Power cycle the range extender then connect to the network again.


User-added image

Wait for your device to connect to the Belkin.setup network before proceeding to the next step.

User-added image



Step 3:
Launch a browser and enter "http://belkin.range" in the Address bar then tap Go.

NOTE:  You can also enter "http://192.168.206.1" in the Address bar to access the range extender's web-based setup page​.


Step 4:
On the page that opens, tap on Get Started.


User-added image

It will search for your router's SSID.

User-added image



Step 5:
Select the wireless network you want to extend.  Tap Next once done.


NOTE:  Click Refresh if your network is not on the list.

User-added image

Wait for the setup to connect to the network.

User-added image

Step 6:
When prompted, enter your wireless network's password then tap Next.


User-added image

Wait for the setup to authenticate your password.

User-added image

Step 7:
If you have a dual-band network, select the second wireless network you want to extend then repeat Step 6.  Tap Next once done.

NOTE:  If you are using a single-band Belkin Wi-Fi Range Extender, it will only detect the 2.4 GHz band.

User-added image

Step 8:

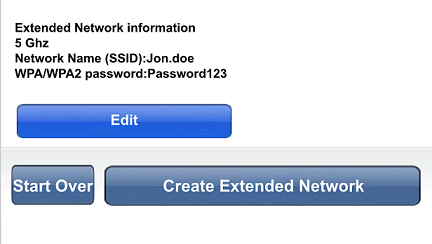

Review the Extended Network information.  Tap Edit if the information needs to be changed.  Otherwise, tap the Create Extended Network button to proceed with the setup.


User-added image

Your extender is now configured.  You will see your network settings on the screen, and you will have the option to print the information when needed.

User-added image
