Setting up a secure network using Wi-Fi Protected Setup™ (WPS)


Wi-Fi Protected Setup™ (WPS) is a feature that lets you easily connect WPS-supported client devices to your router wirelessly.  It is also a method for establishing a network in a secure and simple manner.

IMPORTANT:  The device you want to connect must support WPS.  If your device does not support WPS, you can still set up a secure network through your router’s web-based setup page.  To learn how to do this, click here.

To set up your network using WPS, follow the steps below:

NOTE:  It is recommended to use a wired computer when accessing the router’s web-based setup page.



Step 1:
Launch a web browser to open your router’s web-based setup page.  Enter the router’s IP address in the Address bar.

NOTE:  192.168.2.1 is the default IP address of Belkin routers.



User-added image


Step 2:
Click Login.



User-added image


Step 3:
Enter your router’s Password if you have one.  Otherwise, leave the field blank and click Submit.



User-added image


Step 4:
On the left panel of the router's web-based setup page, click Wi-Fi Protected Setup.



User-added image



By default, WPS is enabled.  There are two methods to connect a wireless computer using WPS.   Click the links below to know how:

Personal Information Number (PIN) Method
Push Button Configuration (PBC) Method

Personal Information Number (PIN) Method



Step 1:
Enter the PIN of your adapter in the Enter Client Device PIN box and click Enroll



NOTE:  The PIN can be found  either in the software utility of the adapter or on the device itself.



User-added image



The software will give a WPS setup initialization notification.



User-added image



When the setup is successful, a notification will be displayed.



User-added image


Push Button Configuration (PBC) Method


To use this option, you will need an adapter that supports PBC via a software utility or on the adapter itself.

Step 1:
Click User-added image on the router's web-based setup page.

You will have 2 minutes to press the WPS button on the router and the device you want to connect.

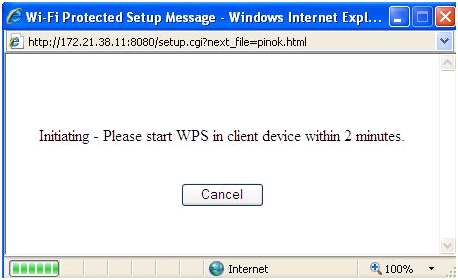

The software will give a WPS setup initialization notification.

User-added image

When the setup is successful, a notification will be displayed.


User-added image


Connecting computers to your network

Now that you have successfully setup WPS for your router, you can proceed in connecting your wireless computers to your network.  For step-by-step instructions on how to do this, click on the links below:

iPhone® and iPod®
Android™

Mac®
Windows®
