Created to deliver a streamlined user experience when working across security enclaves, Belkin's Universal 2nd Gen Secure KVM switches are designed to meet the latest in Common Criteria and NIAP Protection Profile for Peripheral Switching Devices version 4.0 requirements. Compatible with the optional Belkin Secure KVM Remote Control with Integrated Keyboard, the Universal 2nd Gen Secure KVMs elevate the user experience while vastly improving enclave awareness and minimizing operator errors. The keyboard combined with a variety of mounting options from Belkin helps declutter the desk without jeopardizing operator control. Optical data diodes and embedded peripheral emulation allow operators to safely share peripherals across multiple security enclaves without exposing potential vectors for attack. Innovative video combo connectors combined with auto-sensing and internal converters make the Universal 2nd Gen Secure KVM series compatible with modern and legacy systems, eliminating the need for external converters and their inherent cost and compatibility problems. Always on, active anti-tamper and some of the most advanced protections against ultrasonic audio attacks round out the Universal 2nd Gen Secure KVMs. US-manufactured and TAA-compliant, these secure KVM series are ideal for use in IT environments that demand rigorous cybersecurity provisions—including government, military, and healthcare applications.
Ideal for highly sensitive applications that demand isolation between different network security enclaves. The Belkin Universal 2nd Gen Secure KVM series utilize optical data diodes and peripheral emulation on each channel to help prevent data leakage between computers while maintaining strict air-gap isolation, even when sharing peripherals. An 8th order elliptical audio filter protects against ultrasonic attacks.

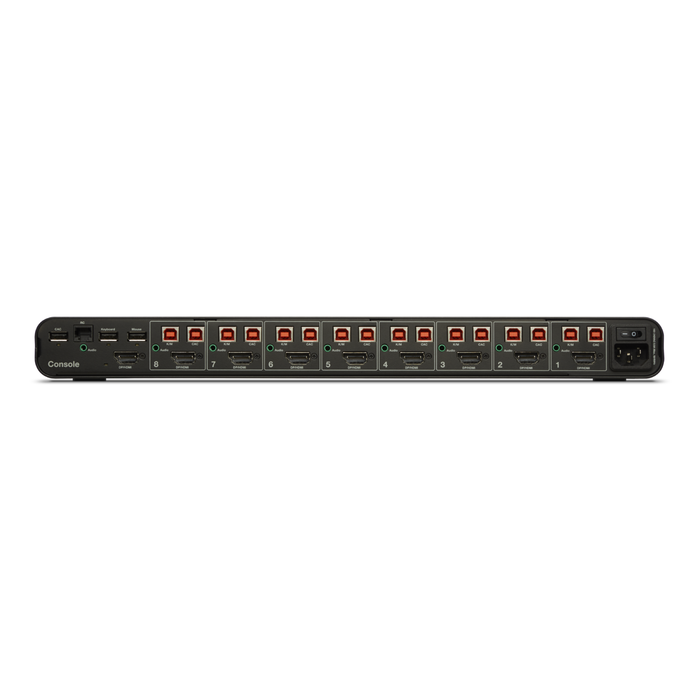

DisplayPort/HDMI combo connectors on each input and output allow the same KVM to accommodate systems with DisplayPort, HDMI, and DVI video outputs and modern and legacy monitors, eliminating the need, cost, and uncertainties with external converters. This flexibility enables IT managers to deploy the same, secure KVM switch across their network and prolong the useful life of the KVM simply by matching the appropriate Belkin cable with each connected system and monitor. Cutting-edge video performance delivers up to 4K resolution and 60Hz refresh on each display.

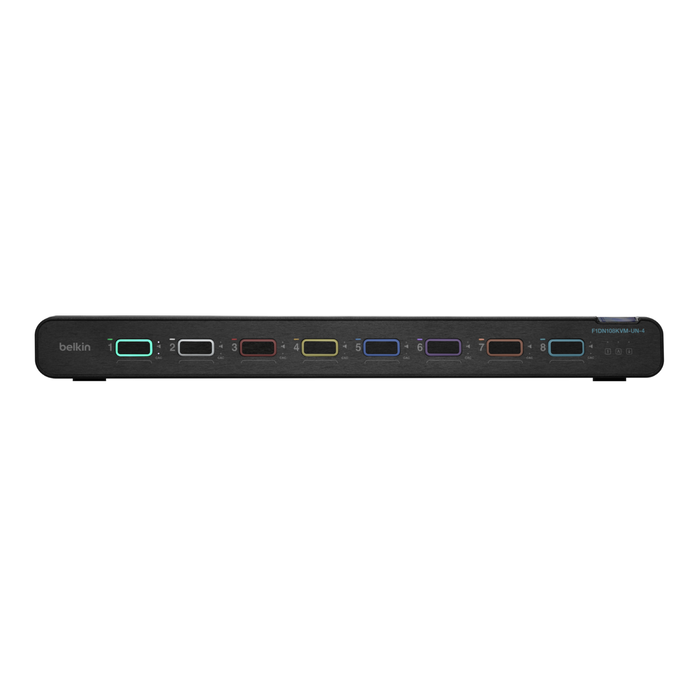

The Universal 2nd Gen Secure KVMs are compatible with Belkin’s innovative KVM Remote Control with Integrated Keyboard. The remote control combines channel selection with a backlit mechanical keyboard that mimics the enclave color codes for each channel, minimizing operator errors. The ability to control the secure KVM via the remote combined with Belkin’s mounting options help enhance user experience and efficiency by decluttering the desk.
DP to DP
|TAA DP/USB/AUD SKVM CBL, DP M/M; USB A/B, 6' |
TAA DP/USB/AUD SKVM CBL, DP M/M; USB A/B, 10'
mDP to DP
|TAA MDP to DP/USB/AUD CBL, VID M/M; USB A/B, 6' |
TAA MDP to DP/USB/AUD CBL, DP M/MDP M; USB A/B, 10'
HDMI to HDMI
|TAA HDMI/USB/AUD CBL,HDMI M/M; USB A/B, 6' |
TAA HDMI/USB/AUD CBL,HDMI M/M; USB A/B, 10'
DVI to HDMI
|TAA DVI to HDMI/USB/AUD CBL, VID M/M; USB A/B, 6' |
TAA DVI to HDMI/USB/AUD CBL, VID MM; USB A/B, 10'
USB-C to DP
|TAA USB-C to DP/USB/AUD CBL VID M; USB B, 6' |
TAA USB-C to DP/USB/AUD CBL VID M; USB B, 10'
DP to DP
|TAA DP/DP VIDEO CBL, DP M/M; 6' |
TAA DP/DP VIDEO CBL, DP M/M; 10'
mDP to DP
|TAA MDP/DP VIDEO CBL, mDP M/DP M; 6' |
TAA MDP/DP VIDEO CBL, mDP M/DP M; 10'
HDMI to HDMI
|TAA HDMI/HDMI SKVM VIDEO CBL, HDMI M/M; 6' |
TAA HDMI/HDMI SKVM VIDEO CBL, HDMI M/M; 10'
DVI to HDMI
|TAA HDMI/DVI SKVM VIDEO CBL, HDMI M/DVI M; 6' |
TAA HDMI/DVI SKVM VIDEO CBL, HDMI M/DVI M; 10'
|TAA USB A to USB B Cable for CAC Reader, 6' |
TAA USB A to USB B Cable for CAC Reader, 10'
|TAA USB Keyboard/Mouse/Audio Combo Cable, 6' |
TAA USB Keyboard/Mouse/Audio Combo Cable, 10'
|F1D9026-50||50' RJ25 Extension for DCU|
|0401-00809||Belkin Modular KVM/KM Power Adapter 12V 1.5A, w/Interchangeable mains connector wall mount|
