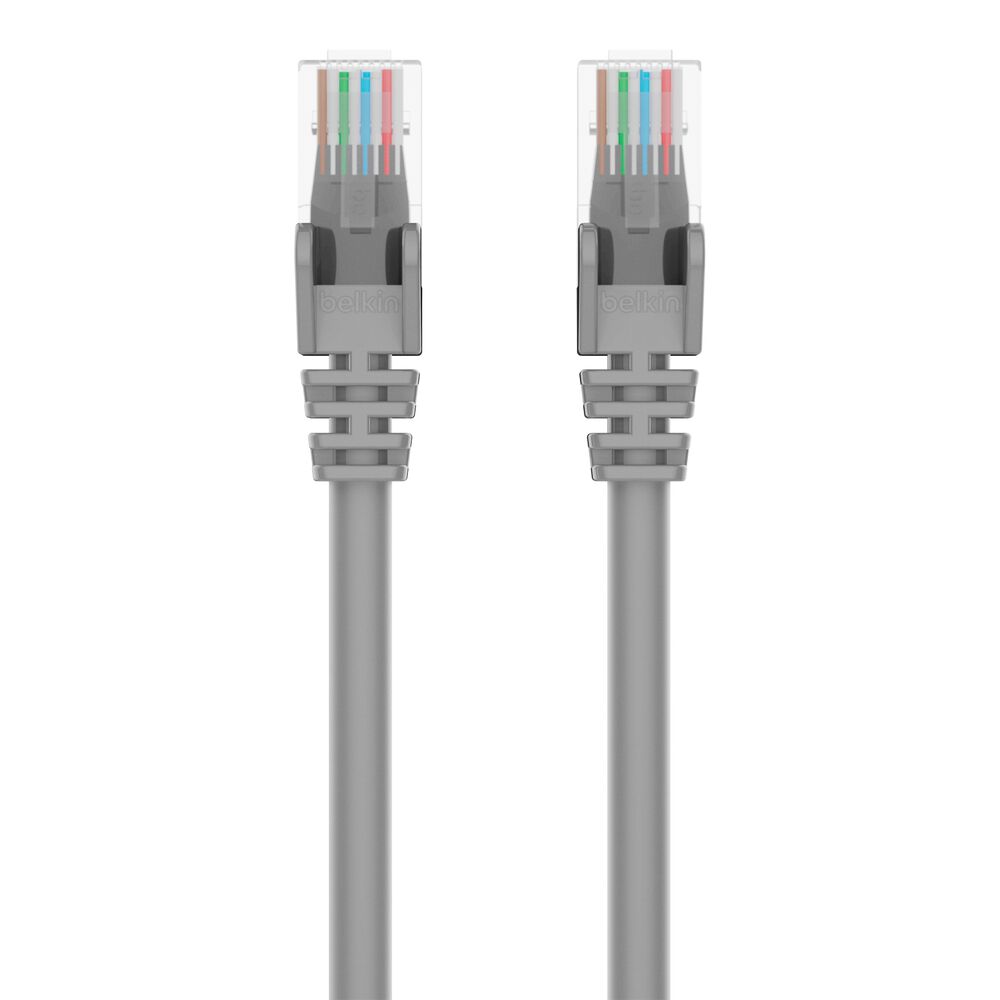

CAT5e Ethernet Patch Cable Snagless, RJ45, M/M
SKU: A3L791b14-S
$1 OFF
Fast and free shipping
30-Day money back guarantee
24/7 Customer support
Adapters/Cables Included
- 1x cable included
Cable Type
- Cat 5e
Characteristic Impedence
- 100±15O @ 1 ~ 350MHz 100±15O @ 1 ~ 350MHz
Conductor Construction
- Bare Stranded Copper
Conductor Resistance
- 89.2O/km/20°C max
Conductor Size
- 24AWG x 4pairs
Connectors
- RJ45
Dielectric Strength
- AC 1.75kV/0.15sec
Flame Retardant Test
- CM
Insulation Material
- HDPE
Jacket Diameter
- 5.5±0.15mm
Jacket Material
- PVC
Mutual Capacitance
- 56pF/m max
Propagation Delay
- 538nS/100m max @ 100MHz
Spark Test
- 2.5kV
Standards Compliance
- ISO/IEC 11801; TIA/EIA-568-B.2
Structural Return Loss
- 19.0dB min at 100MHz
At a Glance:
- Ethernet patch cable with extra headroom
- For connecting to LANs or the Internet
- Works with 10/100/1000BASE-T networks
- RJ45 plugs with 50-micron gold-plated connectors for clear signal
- Exceeds CAT5e performance requirements
- Snagless design prevents cracking and breaking
KEY FEATURES
- UTP stranded copper wires
- Durable PVC jacket
- RJ45 plugs with 50-micron gold-plated connectors
CONNECT EASILY TO A COMPUTER NETWORK
Upgrade your network and enjoy clean and clear transmissions with the Belkin CAT5e Snagless Ethernet Patch Cable. This patch cable lets you connect a laptop or desktop computer to a wall outlet, modem, router or another networking device. It meets the CAT5e standard and is suitable for use with 100/1000BASE-T networks. Patch cables are also handy in home offices and hotel rooms to establish a wired Internet connection.
RJ45 PLUGS WITH GOLD-PLATED CONTACTS FOR A CLEAR SIGNAL
The CAT5e Patch Cable features an RJ45 male connector on each end. Internal load bars ensure accurate plug positioning and consistent high performance, while the 50-micron gold-plated connectors resist corrosion and wear and deliver a clean, clear signal.
FAST, RELIABLE CONNECTIONS WITH CAT5E TECHNOLOGY
This cable exceeds the performance requirements of the CAT5e (Category 5 Enhanced) Ethernet network cable standard. CAT5e cables can support Gigabit Ethernet speeds of up to 1000 Mbps and are backward compatible with Fast Ethernet networks for versatility. Plus, their wire pairs are twisted more tightly than those in CAT5 cables to reduce signal interference.
LESS CROSSTALK WITH TWISTED PAIR WIRES
The Snagless RJ45 CAT5e Patch Cable features 4 Unshielded Twisted Pair (UTP) 24 AWG (American Wire Gauge) stranded copper wires to reduce electromagnetic interference. Stranded cables are more pliable than solid cables, making them better suited for travel. Plus, the wires are housed in a durable PVC outer jacket for abrasion and corrosion resistance.
RESISTS WEAR WITH SNAGLESS-TYPE MOLDINGS
This Ethernet cable includes a molded strain relief with ridges at each end that provides flexibility, reduces stress and allows the cable to move without cracking or breaking away from the plug for greater durability. Plus, the snagless moldings protect each RJ45 plug, preventing damage during installation.
Package Includes:
- CAT5e Ethernet Patch Cable
