1. LC Duplex male connectors
2. SC Duplex male connectors
3. Multimode optical fiber

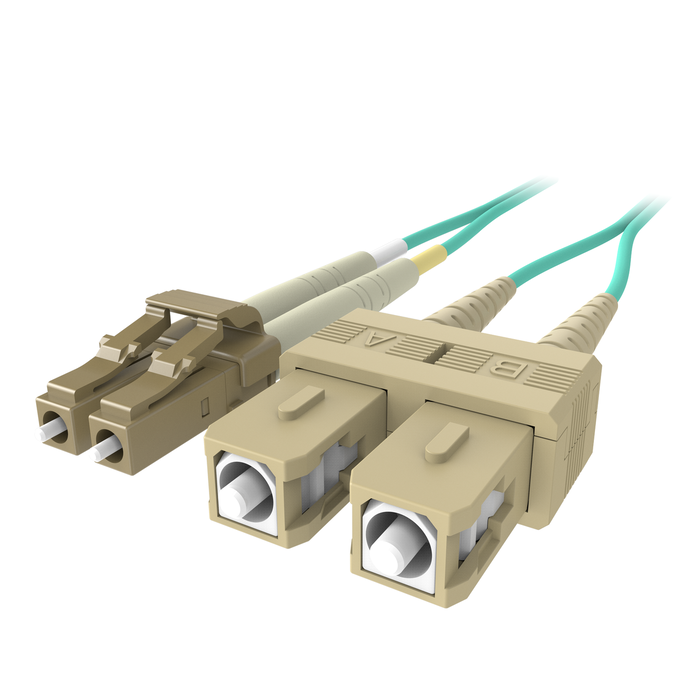

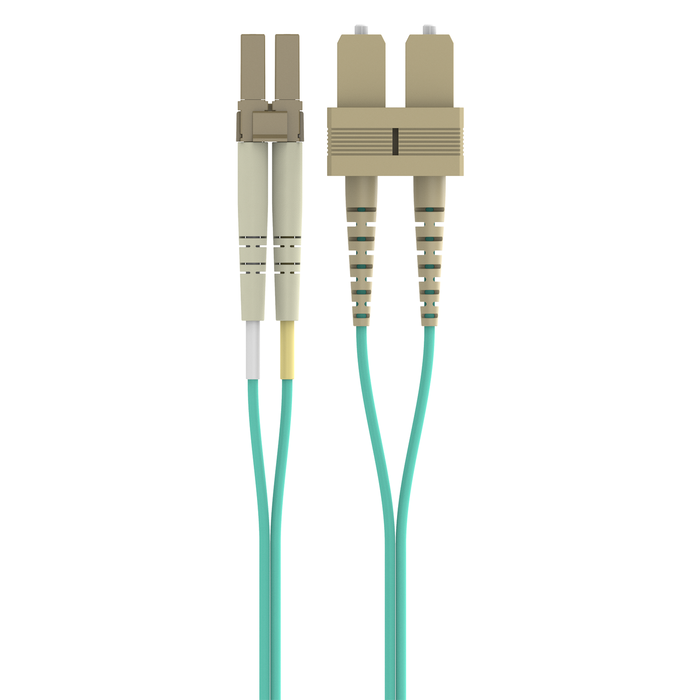

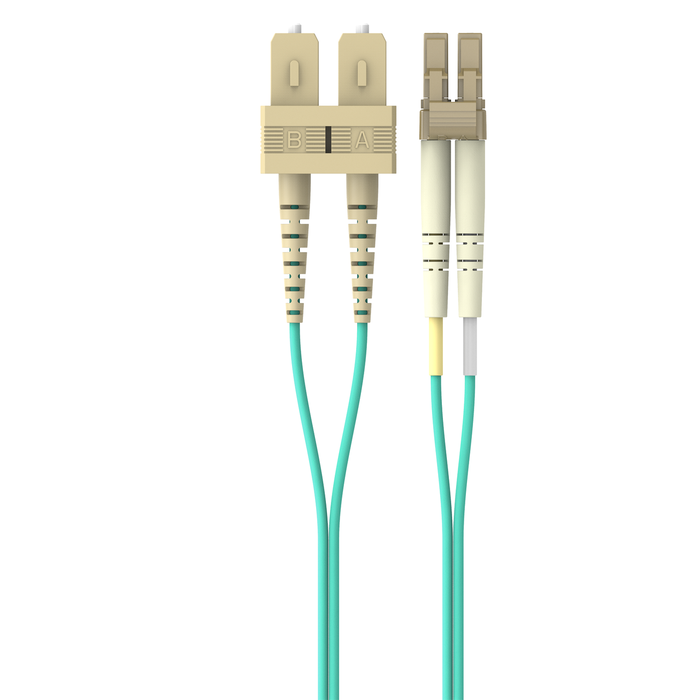

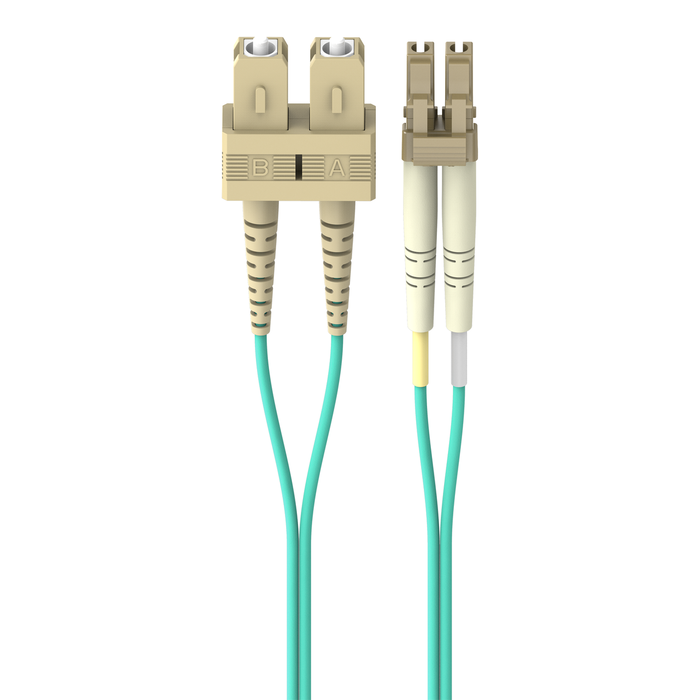

This fiber optic cable features two LC multimode male connectors on one end and two SC multimode male connectors on the other end for fast setup. LC connectors conserve space to accommodate multiple cables.
Establish high-speed data connections within your local area network using the Belkin 10GB Multimode 50/125 LC/SC Fiber Optic Patch Cable. Designed for use in 10 Gigabit Ethernet network applications, the multimode patch cable is backward compatible with existing network equipment and offers three times the bandwidth of traditional 62.5/125 multimode fibers.
Ideal as part of a backbone network, this fiber patch cable uses laser-optimized fiber that has a larger diameter and greater light-gathering capacity than a single-mode fiber. With a core diameter of 50 microns and a cladding diameter of 125 microns, this fiber is better suited for transmitting data over short distances, such as within an office building.
The Belkin 10GB Multimode 50/125 LC/SC Fiber Optic Patch Cable is classified as an OM3 multimode optical fiber cable under ISO/IEC (International Organization for Standardization/International Electrotechnical Commission) standard 11801.
