FastCAT 5e Solid Bulk Cable
SKU: A7L604-1000-GRN
$10 OFF
Sale
Fast and free shipping
90-Day money back guarantee
24/7 Customer support
FastCAT 5e Solid Bulk Cable
$10 OFF
- In Stock In Stock
Characteristic Impedence
- 100±15Ω @ 1 ~ 350MHz
Conductor Construction
- Solid Bare Copper
Conductor Resistance
- 89.4Ω/km/20°C max
Conductor Size
- 24AWG x 4pairs
Dielectric Strength
- AC 1.5kV/2sec
Flame Retardant Test
- CMR
Insulation Material
- FRPE
Jacket Diameter
- 5.10±0.15mm
Jacket Material
- PVC
Mutual Capacitance
- 3.3pF/m max
Propagation Delay
- 536nS/100m max @ 350MHz
Spark Test
- 1.75kV
Standards Compliance
- ISO/IEC 11801; TIA/EIA-568-B.2
Structural Return Loss
- 10.6dB min at 350MHz

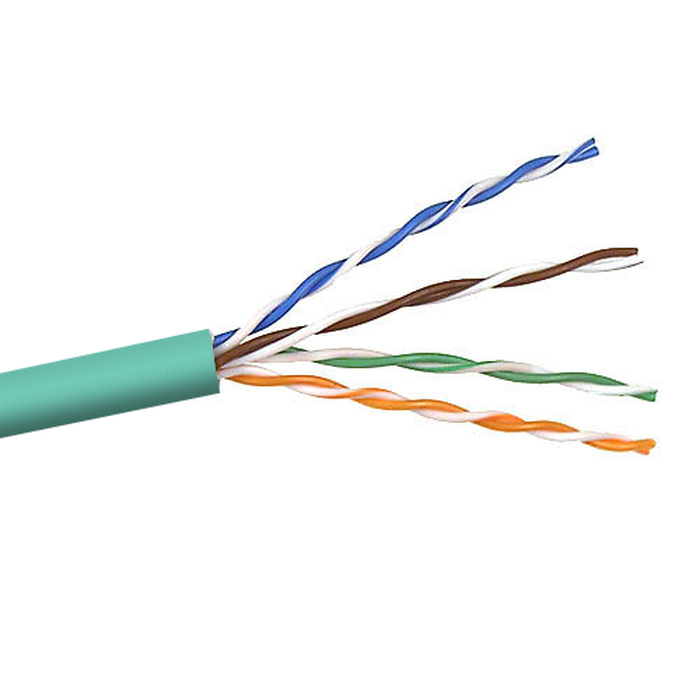

FastCAT5e 350MHz UTP solid PVC bulk cable provides significant headroom above current CAT5e specifications. Perfectly complements other CAT5e products in supporting Gigabit Ethernet networks. Consists of eight solid 24AWG wires and comes in a Reelex? box.
