Sale

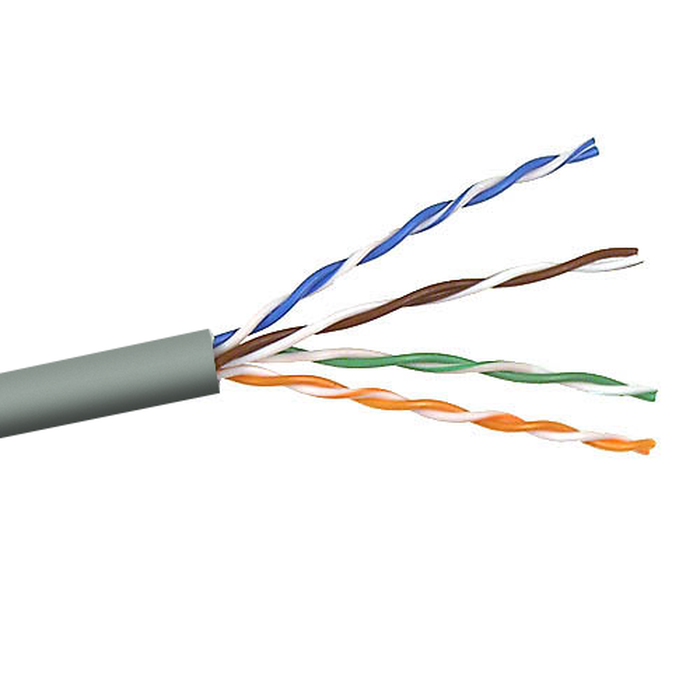

CAT5e Solid Bulk Cable

SKU: A7L504-1000

~~Price reduced from $209.99 to~~ $131.99

$78 OFF

Fast and free shipping

30-Day money back guarantee

24/7 Customer support

Sale

CAT5e Solid Bulk Cable

~~Price reduced from $209.99 to~~ $131.99

Sale

CAT5e Solid Bulk Cable

SKU: A7L504-1000

~~Price reduced from $209.99 to~~ $131.99

$78 OFF

Only a few left! In Stock

Cable Characteristic

Unshielded twisted pair (UTP)

Cable Type

Bulk cable - CAT 5e

Characteristic Impedence

100±15Ω @ 1 ~ 100MHz

Conductor Construction

Solid Bare Copper

Conductor Resistance

89.2Ω/km/20°C max

Conductor Size

24AWG x 4pairs

Dielectric Strength

AC 1.75kV/0.15sec

Flame Retardant Test

Insulation Material

HDPE

Jacket Diameter

5.3±0.15mm

Jacket Material

Mutual Capacitance

56pF/m max

Propagation Delay

538nS/100m max @ 100MHz

Spark Test

AC 1.75kV/0.15sec

Standards Compliance

ISO/IEC 11801; TIA/EIA-568-B.2

Structural Return Loss

19.0dB min at 100MHz

This CAT5e Horizontal UTP PVC Bulk Cable is used to connect a network outlet with a patch panel. This Cable consists of eight solid 24AWG wires, and is suitable for 10/100Base-T networks.
