CAT5e Stranded Bulk Cable

SKU: A7J304-1000-ORG

$289.99

Fast and free shipping

30-Day money back guarantee

24/7 Customer support

CAT5e Stranded Bulk Cable

$289.99

Cable Length

500.0 feet 1000.0 feet

CAT5e Stranded Bulk Cable

SKU: A7J304-1000-ORG

$289.99

In Stock

Cable Length

500.0 feet 1000.0 feet

Cable Characteristic

Unshielded twisted pair (UTP)

Cable Type

Bulk cable - CAT 5e

Characteristic Impedence

100±15Ω @ 1 ~ 100MHz

Conductor Construction

Bare Stranded Copper

Conductor Resistance

89.2Ω/km/20°C max

Conductor Size

24AWG x 4pairs

Dielectric Strength

AC 1.75kV/0.15sec

Flame Retardant Test

Insulation Material

HDPE

Jacket Diameter

5.5±0.15mm

Jacket Material

Mutual Capacitance

56pF/m max

Propagation Delay

538nS/100m max @ 100MHz

Spark Test

AC 1.75kV/0.15sec

Standards Compliance

ISO/IEC 11801; TIA/EIA-568-B.2

Structural Return Loss

19.0dB min at 100MHz

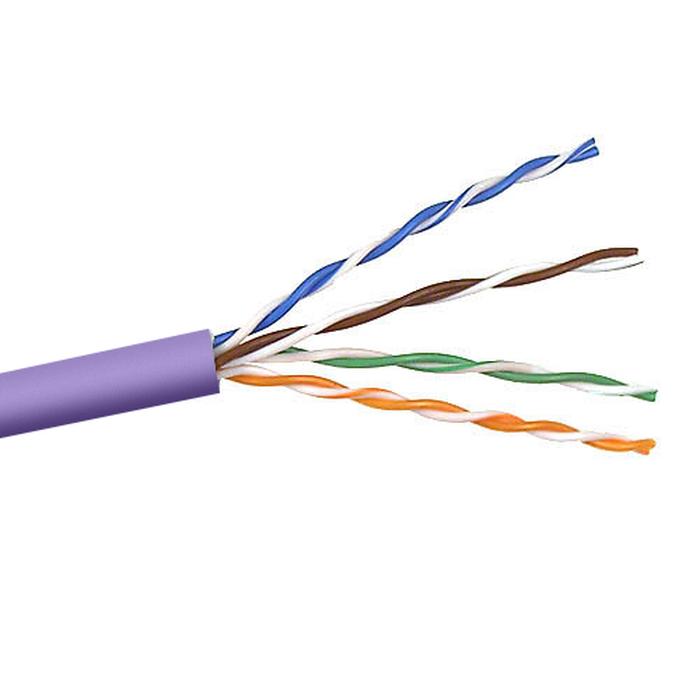

This CAT5e PVC UTP Bulk Cable is used to connect a network outlet with a patch panel. This Cable consists of eight stranded 24AWG wires, and is suitable for 10/100Base-T networks.
