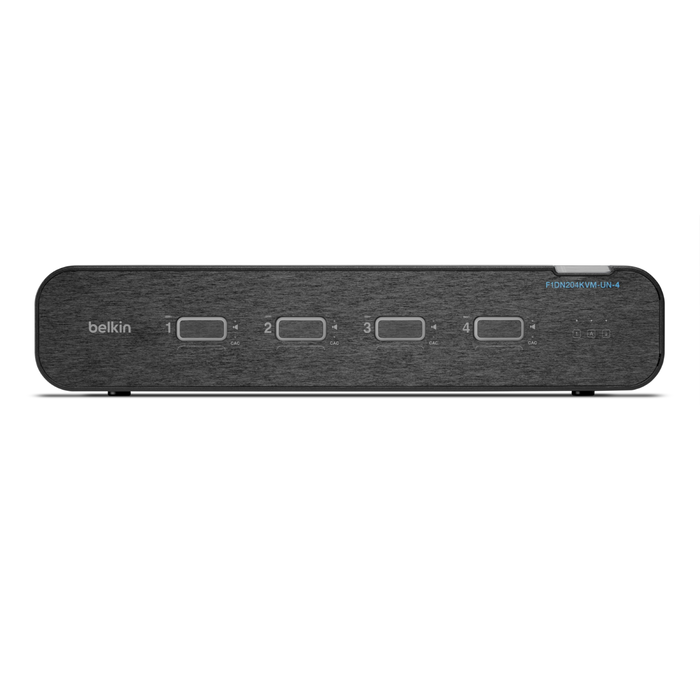

Universal 2nd Gen Secure KVM Switch, 4-Port Dual Head w/ CAC
SKU: F1DN204KVM-UN-4
Universal 2nd Gen Secure KVM Switch, 4-Port Dual Head w/ CAC
- Designed for NIAP Protection Profile PSD 4.0 Compliance
- Combo connector video support for up to 4K (3840x2160), @60hz refresh
- Compatible with the Belkin Secure KVM Remote Control with Integrated Keyboard (Optional)

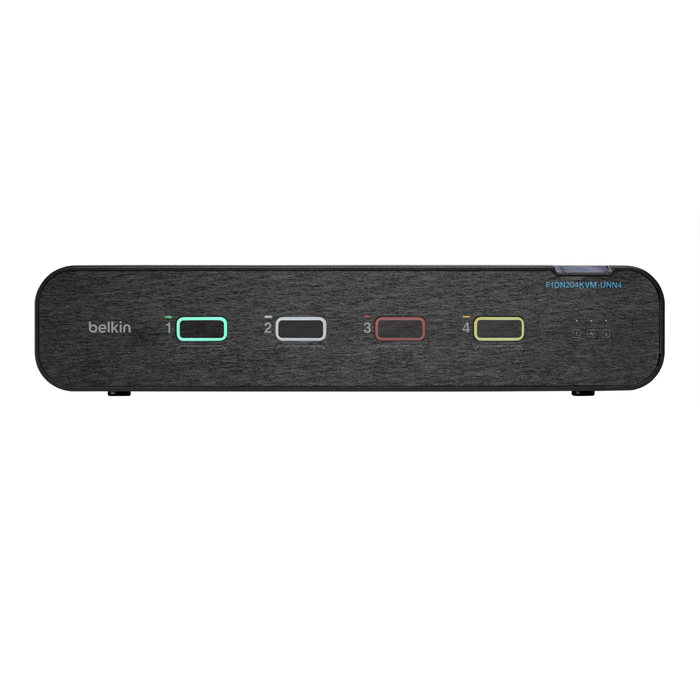

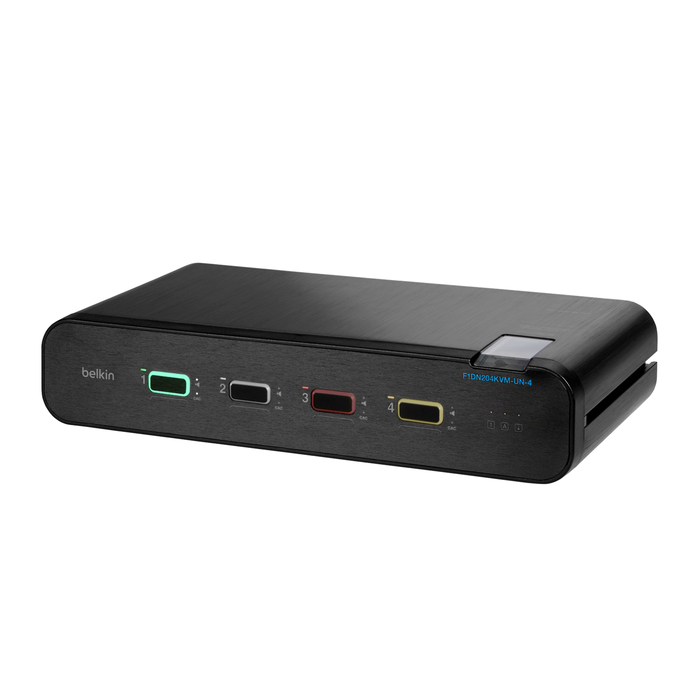

- Customizable port coloring and naming on the front panel: Facilitates port identification and reduces user switching errors. Color coding mimicked by Belkin KVM Remote Control with Integrated Keyboard
- Extrusion form factor that supports an under-counter mount (Optional)
- Supports TAA combo and video cables for easy deployment
- Supports up to four host computers
- Supports two displays for the user
- CAC and Audio freeze functionality
- Dedicated processors with emulators for every port: Isolated port paths for video, audio, and peripherals prevent data leaks between computers
- Unidirectional data paths: Optical data diodes prevent peripherals from being used to breach systems
- Display security: Protected display interface prevents data leakage via the monitor
- Analog audio via 3.5mm jack with ultrasonic audio filtering
- Peripheral management: USB device detection prevents unauthorized peripheral usage

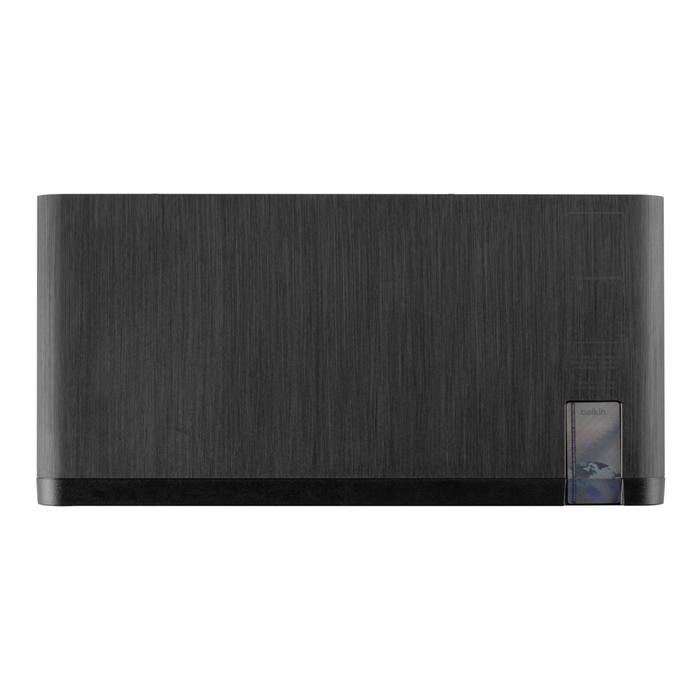

- Active Anti-tampering and Secure labeling: Holographic tamper-evident product label provides visual indication and prevention of tampering
- Fast switching: No keyboard or mouse delays when switching ports, minimal video delay
- Secure packaging: Tamper-evident packaging ensures product is not tampered with during transport
- Belkin F1DN204KVM-UN-4 Secure Universal 2nd Gen 4-Port, Dual Monitor Switch
- 12V, 2.5A Universal Power Supply with Worldwide Adaptors
- Port Naming Labels
- Quick Start Guide and Compliance Documentation

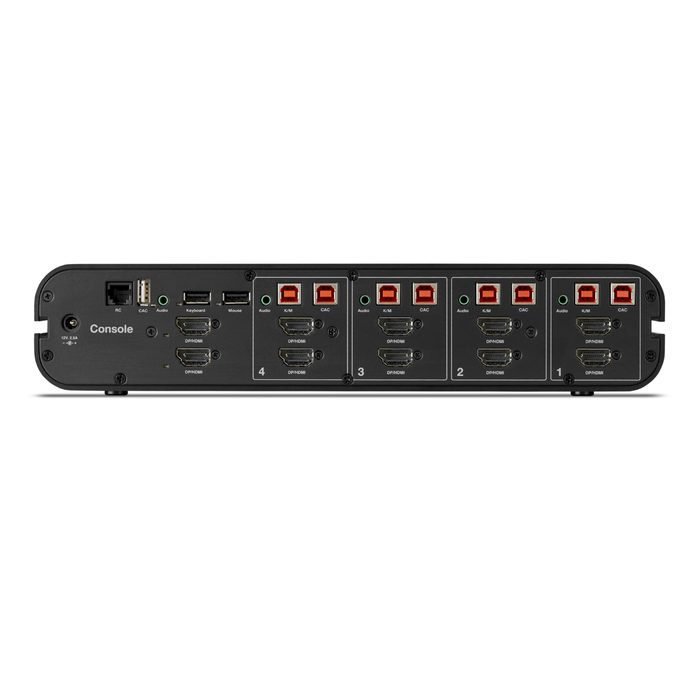

Ports
- CaC/DPP
- Computers
- Keyboard
- Monitors
- Mouse
- Remote
Security Features
- Designed for NIAP PP 4.0 Compliance
Storage Temperature
- -4 to 140F
Certifications
- FCC Class A UL CE RoHS ICES RCM
Console Ports
- 1, Dual Monitors
Display Connection
- DisplayPort/HDMI
Display Type
- DP/HDMI
Form Factor
- desktop
Host Ports
- 4
Keyboard Input
- 1
Keyboard/Mouse Connections
- 2
Keyboard Type
- USB
KVM Maximum Resolution Supported
- 4K@60hz
Local Console Interfaces
- 1, Dual Monitors
Maximum Resolution
- 4K@60hz
Mouse Input
- 1
Mouse Type
- USB
PC Ports
- 4
Power Rating
- 12VDC 2.5A
Power Supply Included
- Yes
Power Supply Type
- External
Remote Control Included
- No
Supported Audio Formats
- 3.5mm Analog
Supported Video Formats
- DisplayPort/HDMI
TAA Compliant
- Yes
CYBERSECURITY SOLUTIONS Find articles, whitepapers, and more >
Belkin Universal 2nd Gen Secure KVM Switch Series
Created to deliver a streamlined user experience when working across security enclaves, Belkin's Universal 2nd Gen Secure KVM switches are designed to meet the latest in Common Criteria and NIAP Protection Profile for Peripheral Switching Devices version 4.0 requirements. Compatible with the optional Belkin Secure KVM Remote Control with Integrated Keyboard, the Universal 2nd Gen Secure KVMs elevate the user experience while vastly improving enclave awareness and minimizing operator errors. The keyboard combined with a variety of mounting options from Belkin helps declutter the desk without jeopardizing operator control. Optical data diodes and embedded peripheral emulation allow operators to safely share peripherals across multiple security enclaves without exposing potential vectors for attack. Innovative video combo connectors combined with auto-sensing and internal converters make the Universal 2nd Gen Secure KVM series compatible with modern and legacy systems, eliminating the need for external converters and their inherent cost and compatibility problems. Always on, active anti-tamper and some of the most advanced protections against ultrasonic audio attacks round out the Universal 2nd Gen Secure KVMs. US-manufactured and TAA-compliant, these secure KVM series are ideal for use in IT environments that demand rigorous cybersecurity provisions—including government, military, and healthcare applications.
The Belkin Difference
- Designed for NIAP Protection Profile 4.0 to meet the highest security standards
- Universal video compatibility accommodates modern and legacy systems and monitors
- Configurable color coding on front panel maps to backlit KVM Remote Control with Integrated Keyboard for optimal user awareness
- Mounting options and Belkin KVM Remote Control with Integrated Keyboard declutter the desk for enhanced user efficiency
- US-based free technical support
Meets the highest standards for cybersecurity
Ideal for highly sensitive applications that demand isolation between different network security enclaves. The Belkin Universal 2nd Gen Secure KVM series utilize optical data diodes and peripheral emulation on each channel to help prevent data leakage between computers while maintaining strict air-gap isolation, even when sharing peripherals. An 8th order elliptical audio filter protects against ultrasonic attacks.
Universal video compatibility with combo connector and internal conversion
DisplayPort/HDMI combo connectors on each input and output allow the same KVM to accommodate systems with DisplayPort, HDMI, and DVI video outputs and modern and legacy monitors, eliminating the need, cost, and uncertainties with external converters. This flexibility enables IT managers to deploy the same, secure KVM switch across their network and prolong the useful life of the KVM simply by matching the appropriate Belkin cable with each connected system and monitor. Cutting-edge video performance delivers up to 4K resolution and 60Hz refresh on each display.
Belkin KVM Remote Control with Integrated Keyboard elevates the user experience
The Universal 2nd Gen Secure KVMs are compatible with Belkin’s innovative KVM Remote Control with Integrated Keyboard. The remote control combines channel selection with a backlit mechanical keyboard that mimics the enclave color codes for each channel, minimizing operator errors. The ability to control the secure KVM via the remote combined with Belkin’s mounting options help enhance user experience and efficiency by decluttering the desk.
| Application | Part Number | Description |
|---|---|---|
| DP to DP | F1D9019b06t F1D9019b10t |
TAA DP/USB/AUD SKVM CBL, DP M/M; USB A/B, 6' TAA DP/USB/AUD SKVM CBL, DP M/M; USB A/B, 10' |
| mDP to DP | F1DN1CCBL-MP6t F1DN1CCBL-MP10t |
TAA MDP to DP/USB/AUD CBL, VID M/M; USB A/B, 6' TAA MDP to DP/USB/AUD CBL, DP M/MDP M; USB A/B, 10' |
| HDMI to HDMI | F1DN1CCBL-HH6t F1DN1CCBL-HH10t |
TAA HDMI/USB/AUD CBL,HDMI M/M; USB A/B, 6' TAA HDMI/USB/AUD CBL,HDMI M/M; USB A/B, 10' |
| DVI to HDMI | F1DN1CCBL-DH6t F1DN1CCBL-DH10t |
TAA DVI to HDMI/USB/AUD CBL, VID M/M; USB A/B, 6' TAA DVI to HDMI/USB/AUD CBL, VID MM; USB A/B, 10' |
| USB-C to DP | F1DN1CCBL-CP6t F1DN1CCBL-CP10t |
TAA USB-C to DP/USB/AUD CBL VID M; USB B, 6' TAA USB-C to DP/USB/AUD CBL VID M; USB B, 10' |
| DVI to DVI | F1D9012b06t F1D9012b10t |
TAA DVI-D to DVI-D KVM Combo Cable, 6' TAA DVI-D to DVI-D KVM Combo Cable, 10' |
| DP to DVI | F1D9017b06 F1D9017b10 |
DP to DVI-D Active Combo cable, 6' DP to DVI-D Active Combo cable, 10' |
| Application | Part Number | Description |
|---|---|---|
| DP to DP | F1D9020b06t F1D9020b10t |
TAA DUAL DP/USB/AUD SKVM CBL, DP M/M; USB A/B, 6' TAA DUAL DP/USB/AUD SKVM CBL, DP M/M; USB A/B, 10' |
| mDP to DP | F1DN2CCBL-MP6t F1DN2CCBL-MP10t |
TAA 2 MDP to DP/USB/AUD CBL, VID M/M; USB A/B, 6' TAA 2 MDP to DP/USB/AUD CBL, VID M/M; USB A/B, 10' |
| HDMI to HDMI and DP to DP | F1DN2CC-HHPP6t F1DN2CC-HHPP10t |
TAA (1) HDMI-HDMI (1) DP-DP/USB/AU CBL, 6' TAA (1) HDMI-HDMI (1) DP-DP/USB/AU CBL, 10' |
| DVI to HDMI and DP to DP | F1DN2CC-DHPP6t F1DN2CC-DHPP10t |
TAA (1) DVI to HDMI (1) DP to DP/USB/AUD CBL, 6' TAA (1) DVI to HDMI (1) DP-DP/USB/AUD CBL, 10' |
| HDMI to HDMI | F1DN2CCBL-HH6t F1DN2CCBL-HH10t |
TAA DUAL HDMI/USB/AUD CBL, HDMI M/M; USB A/B, 6' TAA DUAL HDMI/USB/AUD CBL, HDMI M/M; USB A/B, 10' |
| DVI to HDMI | F1DN2CCBL-DH6t F1DN2CCBL-DH10t |
TAA 2 DVI to HDMI/USB/AUD CBL, VD MM; USB A/B, 6' TAA 2 DVI to HDMI/USB/AUD CBL, VD MM; USB A/B, 10' |
| USB-C to DP | F1DN2CCBL-CP6t F1DN2CCBL-CP10t |
TAA DUAL USB-C to DP/USB/AUD CBL VID M; USB B, 6' TAA DUAL USB-C to DP/USB/AUD CBL VID M; USB B, 10' |
| DVI to DVI | F1D9014b06t F1D9014b10t |
TAA Dual-Head DVI-D to DVI-D KVM Combo Cable, 6' TAA Dual-Head DVI-D to DVI-D KVM Combo Cable, 10' |
| Application | Part Number | Description |
|---|---|---|
| DP to DP | F1DN1VCBL-PP6t F1DN1VCBL-PP10t |
TAA DP/DP VIDEO CBL, DP M/M; 6' TAA DP/DP VIDEO CBL, DP M/M; 10' |
| mDP to DP | F1DN1VCBL-MP6t F1DN1VCBL-MP10t |
TAA MDP/DP VIDEO CBL, mDP M/DP M; 6' TAA MDP/DP VIDEO CBL, mDP M/DP M; 10' |
| HDMI to HDMI | F1DN1VCBL-HH6t F1DN1VCBL-HH10t |
TAA HDMI/HDMI SKVM VIDEO CBL, HDMI M/M; 6' TAA HDMI/HDMI SKVM VIDEO CBL, HDMI M/M; 10' |
| DVI to HDMI | F1DN1VCBL-DH6t F1DN1VCBL-DH10t |
TAA HDMI/DVI SKVM VIDEO CBL, HDMI M/DVI M; 6' TAA HDMI/DVI SKVM VIDEO CBL, HDMI M/DVI M; 10' |
| CAC | F1D9013b06t F1D9013b10t |
TAA USB A to USB B Cable for CAC Reader, 6' TAA USB A to USB B Cable for CAC Reader, 10' |
| USB/Audio | F1D9022b06t F1D9022b10t |
TAA USB Keyboard/Mouse/Audio Combo Cable, 6' TAA USB Keyboard/Mouse/Audio Combo Cable, 10' |
| DCU | F1D9026-50 | 50' RJ25 Extension for DCU |
| Application | Part Number | Description |
|---|---|---|
| Under Desk Mount | F1D006 F1D008 |
Under desk mount for F1DN102KVM-UN/UNN-4, F1DN104KVM-UN/UNN-4, F1DN202KVM-UN/UNN-4 Under desk mount for F1DN204KVM-UN/UNN-4 |
| PSU | 0401-00809 | Belkin Modular KVM/KM Power Adapter 12V 1.5A, w/Interchangeable mains connector wall mount |
