Installing the Belkin Network USB Hub Control Center software

The Belkin Network USB Hub, F5L009 is an innovative sharing tool which gives you access to your USB devices remotely.  You can access up to 16 connections remotely through an existing wired or wireless network.

NOTE:  The number of connections may not equal to one (1) device.  Some devices, such as multifunctional printers, typically comprise two (2) or more connections.  To learn more about the Belkin F5L009, click here.

In order for your Belkin F5L009 to work and for you to utilize its sharing feature, you will need to install the Belkin Network USB Hub Control Center software on your computer.  This article will walk you through the process.
Click on the links below for specific instructions.

Preparing for setup
Installing the software

Preparing for setup

Step 1:
Connect the AC adapter into the Belkin F5L009.

NOTE:  The green light should illuminate.


Step 2:
Plug one end of the Ethernet cable into the Belkin F5L009 and the other end to your router.

Installing the software

Step 1:
Insert the setup CD into the CD-ROM drive of your computer.

Step 2:
Click Install Control Center.

User-added image

Step 3:
On the screen that opens, click the Next > button.

User-added image

Step 4:
Select the destination folder of the file you are installing and click Next once done.

QUICK TIP:  Selecting a destination folder will help you organize and easily locate files you have installed or saved.


Step 5:
Create a Group Name for the program folder and click the Next > button.

NOTE:  In this example Belkin Network USB Hub Control Center was used.


User-added image

Step 6:

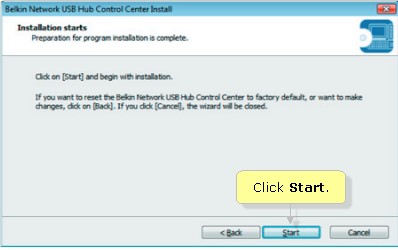

Click Start to begin the installation.

User-added image

Step 7:

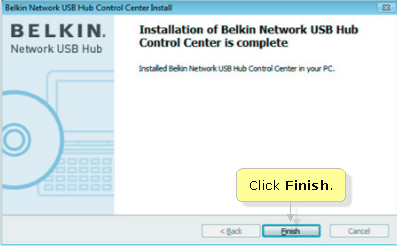

Once the installation has completed, click Finish.

User-added image

You should have now completed the setup.  You can now launch the Belkin Network USB Hub Control Center through the Start menu.


Related Article:

Updating the firmware of the Belkin Network USB Hub, F5L009
