Indicator light behavior of the Belkin BOOST↑UP™ Qi™ Wireless Charging Pad, F8M741 and F8M747

User-added image

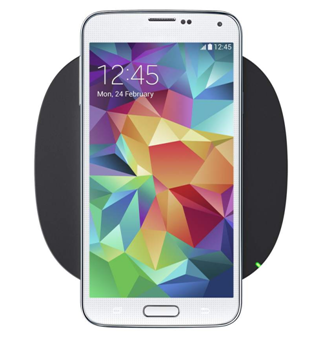

The Belkin BOOST↑UP™ Qi™ Wireless Charging Pad, F8M741 and F8M747 allows you to charge Qi™-enabled smartphones wirelessly.  Once you place your phone on the charging pad, the indicator light lets you know if the device is charging properly.

The table below explains the charging pad's status based on the indicator light color.


Indicator lightDescriptionRepresentation
GreenQi device is detected.
  • Solid – fully charged.
NOTE:  Your device must support a full battery communication to the base station for the indicator light to turn solid.  Otherwise, check the Full battery indicator on your smartphone.
  • ​Blinking – charging in progress.
NOTE:  If the indicator light turns red, you can also re-positioning your phone on the charging pad as misaligned devices will not charge.
User-added image
OrangeInput Power Supply or the USB cable is not good enough to supply power. Use the appropriate power supply and cable.  To learn more, click here.User-added image
RedThe charging pad has detected an incompatible device and will not charge.

NOTE:  You can also try re-positioning your phone on the charging pad as misaligned devices will not charge.
User-added image

For compatibility and other information on the F8M741 and F8M747, click here.
