Setting up your router using the Dashboard


Belkin Routers have a built-in web-based setup page that allows users to customize and set up advanced settings.  This feature may be used to easily check, configure, and modify settings on the router.

NOTE:  Details on the troubleshooting steps and images may vary depending on your router's model number.


This article will guide you on how to set up your router using the web-based setup page.

Step 1:
Unplug the modem from the power outlet.



Step 2:
Connect the ethernet cable from the modem to the WAN or internet port of the router.




Step 3:
Plug both the modem and the router into a power outlet.



Step 4:

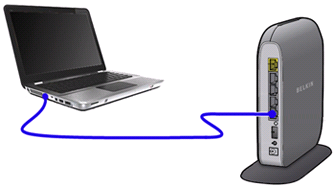

Connect your computer to one of the ethernet ports of the Belkin router.


User-added image

Step 5:
In your computer, open a web browser such as Google Chrome™.

Step 6:
Enter "http://router" or the Belkin router's IP address in the Address bar and press [ENTER].  The default IP address of Belkin routers is 192.168.2.1 If it doesn't work, check your router's IP address.  For instructions on how to do this, click here.

NOTE:  If in case your Belkin router is not working as expected, you can reset it to its factory defaults.  To learn how to do this, click here.

Step 7:
Click Image
This process may take several minutes depending on your connection.

QUICK TIP:  In some Belkin router models, you may need to click Try my connection after the router detects your connection.

NOTE:  You may be asked to restart your modem or enter a username and password if your Internet Service Provider (ISP) requires it.

Step 8:
The router will check if a new firmware is available.

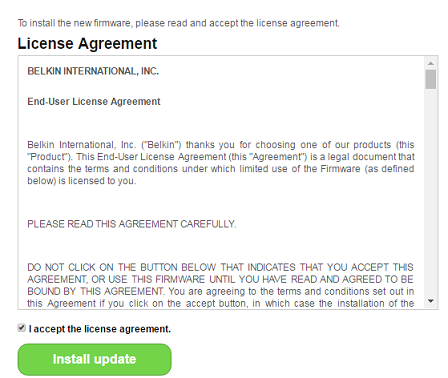

If an update is available, read and accept the License Agreement.  Click on Install update

User-added image

Wait for the firmware to finish downloading and install the firmware to the router.  This may take several minutes.

Step 9:

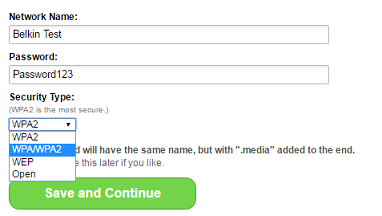

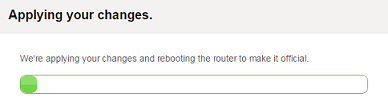

Enter your router's Network Name, Password and your preferred Security Type.  Once done, click Save and Continue.

User-added image

User-added image

Step 10:

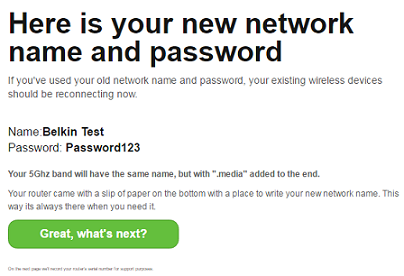

Take note of the information on the screen that comes up as these will be used to connect wireless devices to your wireless network.  Click Image.

User-added image

Step 11:

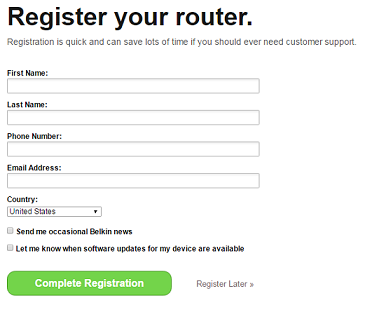

Register your router by filling out the fields provided.  Click Complete Registration once done.


User-added image

Step 12:
Click Image.

You will be redirected to the dashboard where you can change your router's settings.


You have now successfully set up your router.
