How to set up the Wemo WiFi Smart Dimmer

Watch the installation video
Compatible bulb types
How to tell which version of Wemo Dimmer you have
Physical installation (Wemo Dimmer F7C059 and WSD060)
Finishing the setup in the Wemo app
Adjusting your brightness level
What does the power light color tell me?

The Wemo® WiFi Smart Dimmer, F7C059 and WSD060 make it easy for you to control your dimmable lighting anywhere you are and anytime you want.

If you are NOT familiar with electrical work, or feel uncomfortable about it, contact a professional electrician.


Watch the installation video

This video shows the installation of a Wemo Wi-Fi Smart Dimmer.



How to tell which version of Wemo Dimmer you have

The second-generation Wemo Dimmer (WDS060) has a power icon on the button while the first-generation Wemo Dimmer (F7C059) does not.

User-added image


Physical Installation (Wemo Dimmer F7C059 and WDS060)

Before you begin:
  • Make sure your home has a neutral wire in the wall where you want to install the Wemo Dimmer.  The Wemo Dimmer will not work without a neutral wire.  View the wiring diagrams here.
  • Download and install the Wemo app.  It is available at the App Store® for iOS devices and on Google Play™ for Android™ devices.
  • If you are installing more than one Wemo Dimmer, or if you already have another Wemo Dimmer in your home, write down the Wemo ID# found on the label at the bottom of the Wemo Dimmer.  You can also find the Wemo ID on the package, right above the serial number.
  • Check the Wi-Fi signal on your phone at the spot where you’ll install the Wemo Dimmer to make sure the Wi-Fi is strong.  Wemo only works on your 2.4 GHz wireless band.
  • If you have an iOS device, you’ll need iOS 11.3 or later to use the Apple® Home™ app to manage your Wemo Dimmer.  If you will use only the Wemo app, you’ll need iOS 9.0 or higher.

Step 1:  Turn the power OFF.

Shut OFF power to the light switch you are replacing at the circuit breaker or fuse box.


User-added image

WARNING! Risk of electric shock!
Incorrect installation could be dangerous or illegal.  Multiple breakers/fuses may need to be turned OFF for safe installation.  Please call a professional electrician if you are unfamiliar or uncomfortable with electrical work.

Confirm that the power is turned OFF


Remove the cover plate from the existing switch.  Use a voltage tester to test BOTH sides of the switch.  You may need to turn OFF more than one circuit breaker/fuse.


User-added image

Step 2:  Find the neutral wires.

Unscrew the existing switch and gently pull it out of the wall.  Look for the neutral wires, usually white.  You need these to install the Wemo Dimmer.  Continue ONLY if you have the neutral wires.

User-added image

NOTE:  You may have a different color and number of neutral wires than shown.

To see the correct wiring diagram, click here.

Test the neutral wires

Use a voltage tester to check that there is no power in the neutral wires from neighboring circuits.  If necessary, shut OFF additional circuits until no voltage is found.


User-added image

Disconnect the neutral wires

Unscrew the wire nut connecting the neutral wires.


User-added image

Step 3:  Find the ground wires.

Look for the ground wires (usually green or solid copper) and unscrew the wire nut connecting them.

NOTE:  You may have a different color and number of ground wires than shown.


User-added image

Step 4:  Find and label the line and load wires.

Label the line and load wires.  If you're unsure which wire is which, we'll help you in the next step.

NOTE:  Your existing wires may be in different locations than shown.


User-added image

IMPORTANT:  Never label wires while the power is turned ON.

Help with distinguishing the line from load wires:

1.  Disconnect the remaining wires and remove the existing switch.
2.  Cap the line and load wires for safety.


User-added image

3.  Turn the power back ON.

IMPORTANT:  Make sure not to directly touch any wires while the power is turned ON.

4.  Test to identify the wires.

Use a non-contact voltage tester to distinguish the wires.


User-added image

Line wire:  This wire will have power because it carries electricity to the switch.
Load wire:  This wire will not have power because it carries electricity from the switch to your lights.

5.  Turn the power back OFF.

IMPORTANT:  Verify that the power is turned OFF before proceeding.

6.  Label the line and load wires.


Step 5:  Connect the Wemo Dimmer wires.

IMPORTANT:  Make sure the power is turned OFF before you proceed.

Remove the cover plate

After disconnecting and removing the existing switch, snap the cover plate off of your Wemo Dimmer.


User-added image

Connect the line and load wires
  • Use a wire nut to connect the red load wire on the Wemo Dimmer to the load wire in the wall.
  • Use a wire nut to connect the black line wire on the Wemo Dimmer to the line wire in the wall.
NOTE:  Your existing wires may have different colors than those shown.

User-added image

Connect the neutral and ground wires
  • Use a wire nut to connect the white neutral wire on the Wemo Dimmer to the neutral wires (usually white) in the wall.
  • Use a wire nut to connect the green ground wire on the Wemo Dimmer to the ground wires (usually green or bare copper) in the wall.

NOTE:  Your existing wires may have different colors than those shown.

User-added image

Step 6:  Install the Wemo Dimmer into the wall.

Almost done!  Tug on each wire nut to make sure they are secure on the wires.

User-added image

Carefully tuck the wires behind the Wemo Dimmer

Insert the Wemo Dimmer into the box.  It could get crowded in there.


User-added image

Screw the Wemo Dimmer into the wall and snap on the cover plate

Be careful not to over-tighten the screws.


User-added image

NOTE:  If you’re working with a second-generation Wemo Dimmer (WSD060), you’ll notice an eight-digit setup code on the Wemo Dimmer.  You’ll need this during the Wemo app setup if you have an iOS device.


User-added image

Step 7:  Turn ON the power.

Turn ON the power on your Wemo Dimmer at the fuse panel or circuit breaker panel.
User-added image



Finishing the setup in the Wemo app for Wemo Dimmer F7C059 (first generation)

The light bar on your Wemo Dimmer should start to blink white while starting up and blue when ready for the Wemo app setup.

Blinking white
User-added image - Starting up

Blinking blue
User-added image - Ready for Wemo app setup

NOTE:  If your Wemo Dimmer did not power up, then your load and line wires may be reversed and you need to switch them.


Step 1:  Go to the Wemo app for the next steps.

Download and launch the Wemo app.

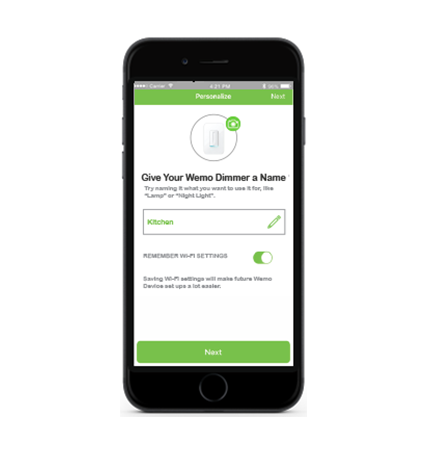

Create a Wemo account in the Wemo app, then add your Wemo Dimmer.  Click here to know how.


User-added image

Step 2:  Tell us what you're setting up.

User-added image

Step 3:  Choose a Wemo Dimmer model.

User-added image

Step 4:  Confirm the physical installation.

User-added image

Step 5:  Confirm that the Wemo Dimmer is ready for setup.

User-added image

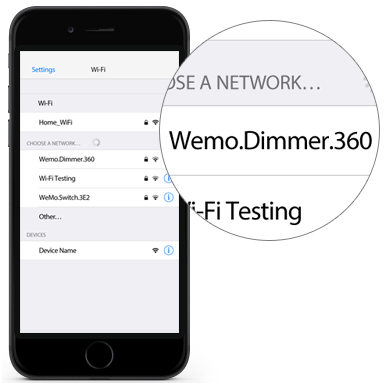

Step 6:  Connect to the Wemo’s temporary setup Wi-Fi.

User-added image

NOTE:  Remote Access allows you to control your device when you are away from home.  If Remote Access fails in setup, tap on Later to complete the setup without Remote Access.  After the setup is complete, go to More > Remote Access and tap on Enable (make sure your mobile device is connected to your Wi-Fi).


Connecting to other services

Control your Wemo devices with voice, create groups, and more.  Connect to these services in the Wemo app.




Finishing the setup in the Wemo app for Wemo Dimmer WDS060 (second generation)

The light ring on your Wemo Dimmer should start to blink white while starting up and blue when ready for the Wemo app setup.

Blinking white
User-added image - Starting up

Blinking blue
User-added image - Ready for Wemo app setup


NOTE:  If your Wemo Dimmer did not power up, your load and line wires may be reversed and you need to switch them.

Step 1:  Go to the Wemo app for the next steps.

Download and launch the Wemo app.

Create a Wemo account in the Wemo app, then add your Wemo Dimmer.  Click here to know how.


User-added image

Step 2:  Tell us what you're setting up.

User-added image

Step 3:  Choose a Wemo Dimmer model.

User-added image

Step 4:  Confirm the physical setup.

User-added image

Step 5:  Confirm the Wemo Dimmer is ready for setup.

User-added image

Step 6:  Connect to the Wemo’s temporary setup Wi-Fi (Android) or use the HomeKit® setup code (iOS).

User-added image

User-added image

If you still have your quick setup guide, the HomeKit code is on a sticker in the guide.  You can also find it on the Wemo Dimmer behind the faceplate.

User-added image

Connecting to other services

Control your Wemos with voice, create groups, and more.  Connect to these services in the Wemo app.




Adjusting your brightness level

After the setup, you can adjust the brightness level of the bulbs controlled by your Wemo Dimmer by tapping on Edit in the Devices screen of the Wemo app.


User-added image

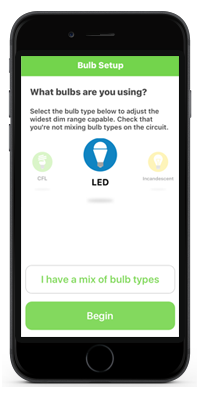

Select what type of bulb you have.  If your Wemo Dimmer controls more than one bulb, it will work best if all bulbs are of the same type.


User-added image

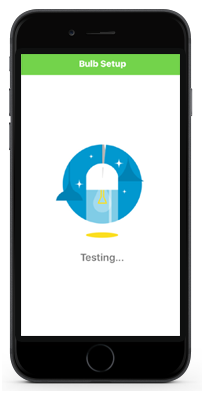

When prompted, tap Yes, Let’s Test and Test on the following screen.


User-added image

User-added image

If your bulbs don’t turn ON, recalibrate the power until they turn ON.


User-added image

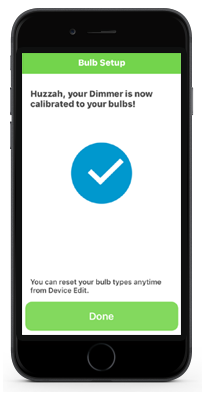

Once your bulbs are turned ON, follow the onscreen instructions to test the brightness range and adjust if necessary.


User-added image User-added image
