Updating the router’s firmware through the Belkin Dashboard

A firmware update contains encoded instructions to help improve the performance of your Belkin router.  It could also resolve issues that the previous firmware version may have.  This article will guide you on how to update the firmware of your Belkin router through the Dashboard.

IMPORTANT:  Before starting the troubleshooting process, it is recommended that your computer is connected to the router using an ethernet cable for stable connectivity and to prevent update failures.  Updating the firmware wirelessly may cause damage to the router since Wi-Fi may be unstable during the process.

Automatically updating the firmware

If your router's web-based setup page or Dashboard has an option to check for updates automatically, simply click that button.  In this way, when a new firmware is available, you may directly proceed to updating the firmware.

Manually updating the firmware

NOTE:  Make sure to take note of the model number and version of your Belkin router.  It can be found on the label at the bottom of the router or on the box above the UPC code.  To learn more about finding the version number of your device, click here.

Step 1:
Launch a web browser like Internet Explorer® and go to the Belkin Support page to download the latest firmware.

Step 2:
Enter the model number of your device in the search bar and press [Enter] on your keyboard.

User-added image

NOTE:  The Belkin F9K1113 is used here as an example.

Step 3:
Click on your device under the Product Results section.


User-added image

QUICK TIP:  You can also scroll-down on the Downloads section under Support Results and click on your product's download article then proceed to Step 5.

User-added image

Step 4:

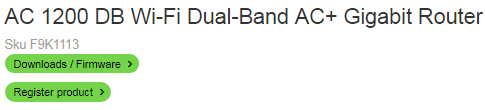

Click Downloads / Firmware >


User-added image

Step 5:
On the download article's page, select the hardware version of your device.


User-added image

Step 6:
Click the Download link that corresponds to the file you need.

NOTE:  You may be asked to specify a location to save the file or it may automatically be saved to a default download location depending on the settings of your web browser.

User-added image

Step 7:
Once the download is completed, you may proceed with updating the driver or firmware of your Belkin device.  Open another web browser, enter "http://router" or the router's default IP address, "192.168.2.1" in the Address bar and press [Enter].  If you have changed the IP address of your Belkin router, use that instead.  For instructions on how to check your IP address, click here.

Step 8:
Click User-added image.

Step 9:
On the Dashboard page, scroll-down and click Advanced Settings > Utilities then select Firmware Update.

User-added image

NOTE:  You can also go to Router Details section and click on Firmware instead.

User-added image

Step 10:
Click Choose File and select the file you downloaded.  Then, click the Open button and click Update.  Wait until the router completes the update.

User-added image

QUICK TIP:  Make sure the update is uninterrupted.

Step 11:
When the update is completed, make sure to check the light behavior of your router before using it.  For more information regarding the light behavior of Belkin routers, click here.

You should now have successfully updated the firmware of your router through manual configuration.
