Installing the OSRAM LIGHTIFY™ Gardenspot Mini RGB

The OSRAM LIGHTIFY™ Gardenspot Mini RGB makes your outdoor area glow with colorful lighting effects.  This article will guide you on how to install it


There are a few basic requirements that you need to have before you can start:
  1.   A working Wi-Fi with internet connection
  2.   A Wemo® Link (Included in starter set)
  3.   Wemo App 1.12 or higher installed on your smartphone or tablet
NOTE:  You can download and install the free Wemo App from the App Store® for iOS devices or Google Play™ store for Android™ devices.



Installing the Gardenspot lights to your desired location

You can choose from any of the three installations for your lights:


1. In Ground Installation
Measure the area you want to install the Gardenspot lights and insert the pick into the ground with the light facing upwards

NOTE:  The Gardenspot Mini RGB is 14 feet long with nine lights, connectable.  The maximum length of the power supply that you can have is 28 feet (18 lights).  Do NOT insert the pick to more than 6 inches (152 mm) deep from the ground surface.

User-added image

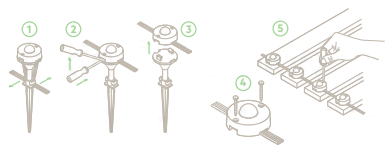

2. Surface Installation
Remove the cord from the cord hooks.  Use a screwdriver to loosen then separate the light from the pick. Then, fix and screw the light source into the surface.

User-added image

3. Installing the 3-foot Expansion Kit (Optional)
 Turn OFF the power first before installing the expansion kit.  Do NOT exceed the maximum 28 feet (18 lights).  Turn the plastic end cap counterclockwise to remove from the first product.  Connect the expansion kit and then turn the plastic end cap clockwise at the end of the expansion kit.

User-added image


Setting up the Gardenspot lights with the Wemo App​

The OSRAM LIGHTIFY™ Gardenspot Mini RGB requires a Wemo Link to operate on your Wi-Fi.  If you have the starter set, it is already included in the package.  If you already have an existing Wemo Link in your W-Fi, you can also connect your Gardenspot lights to that.  For instructions, click here

Step 1:  Connect the Light Strand Connector to the Controller Connector.

NOTE:  Make sure all connectors are firmly tightened and secured.  You can turn the plastic end cap clockwise tightly at the end of the Light Strand.

User-added image

Step 2:  Connect the Controller into a Power Supply Connector and plug the power supply into an outlet.

NOTE:  Only plug the power supply into an outdoor outlet that has Ground Fault Circuit Interrupter (GFCI) protection.

User-added image

Step 3:  Plug in the Wemo Link in a central location of your home.

User-added image

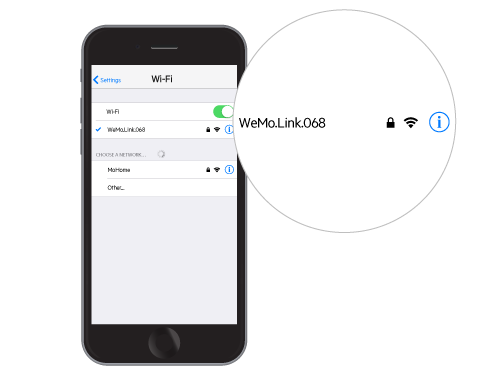

Step 4:  On your smartphone or tablet, tap Settings > Wi-Fi > WeMo.Link.xxx.

NOTE:  The default Wi-Fi name of the Wemo Link has this format, WeMo.Link.xxx.  The xxx represents the last three digits of its serial number.

User-added image

Step 5:  Launch the User-added image App.

Step 6:  Select your Wi-Fi when prompted.

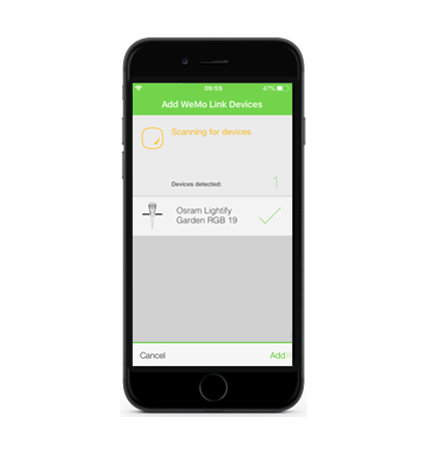

Step 7:  After the Wemo Link is set up, it will start scanning for the Gardenspot lights.  Make sure the the Gardenspot lights are turned ON.

QUICK TIP:  When the Gardenspot lights have been detected, it will flash for a few seconds.  Also, by default, they will appear in order as detected by the name.

User-added image

NOTE:  The Gardenspot lights must be on default settings (not paired to any other Wemo Link).  If they were previously connected to a Wi-Fi and you need to set them up again, you will need to reset the Gardenspot lights so they can once again be detected.  To learn how to reset the Gardenspot lights, click here.

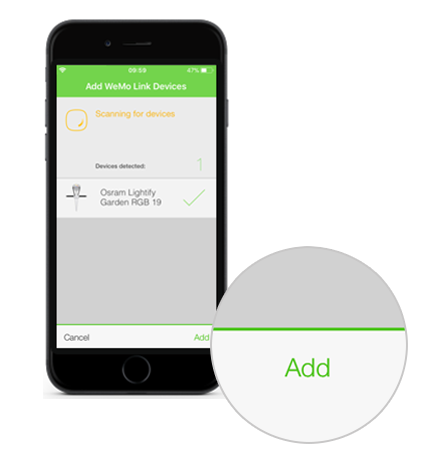

Step 8:  Tap Add to pair the Gardenspot lights to the Wemo Link.  You should then see the success screen in the Wemo App.

User-added image

NOTE:  Any Gardenspot lights discovered on this screen will appear with a checkmark.  If you do not want to add a light strip, just tap it to uncheck it.

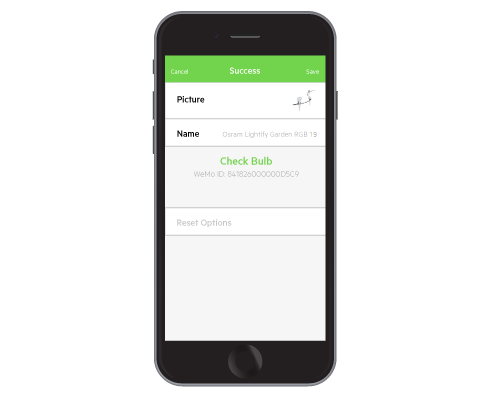

Step 9:  Modify the name of your Gardenspot lights or change its picture field and then tap Save.  You can also leave them as is and change it next time.

User-added image

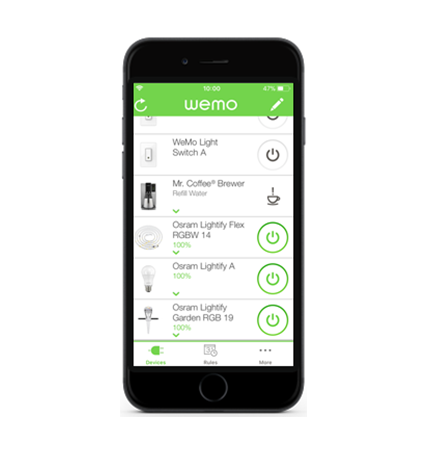

You have now successfully installed your OSRAM LIGHTIFY™ Gardenspot Mini RGB.

User-added image
