IMPORTANT: While the Wemo 3-Way Light Switch can be installed by anyone, it is highly recommended to leave the installation to a professional electrician if you do not feel comfortable working with or you are not familiar with electrical wiring.
Tools required
To install your Wemo 3-Way Light Switch, you will need the following:
- Phillips screwdriver
- Standard screwdriver
- Pliers
- Wire stripper
- Voltage tester
Before you begin
To install your Wemo 3-Way Light Switch, you will need to work with your home electrical wiring. When working with electrical wiring, there is always a risk of electric shock. Before removing any existing light switches, shut OFF the power to the circuit powering your light switch, the main circuit breaker, or the fuse panel of your home.
Once you have verified that the power has been turned OFF from the circuit you will be working with, you can begin removing your existing light switch and installing your new Wemo 3-Way Light Switch.
Removing the existing light switch
Step 1: Remove the faceplate of your existing light switch. Then use your voltage tester to confirm that your existing light switch has no power by testing the wires connected on both sides of the switch. If your voltage tester reads positive for voltage, you may need to turn OFF more than one circuit breaker or remove more than one fuse panel.
Step 2: Use your screwdriver to remove the two screws that are securing the light switch to the gang box in your wall. Once the screws are removed, gently pull out your light switch to detach it from the wall.
NOTE: Do not unscrew any of the wiring at this point.
NOTE: Do not unscrew any of the wiring at this point.

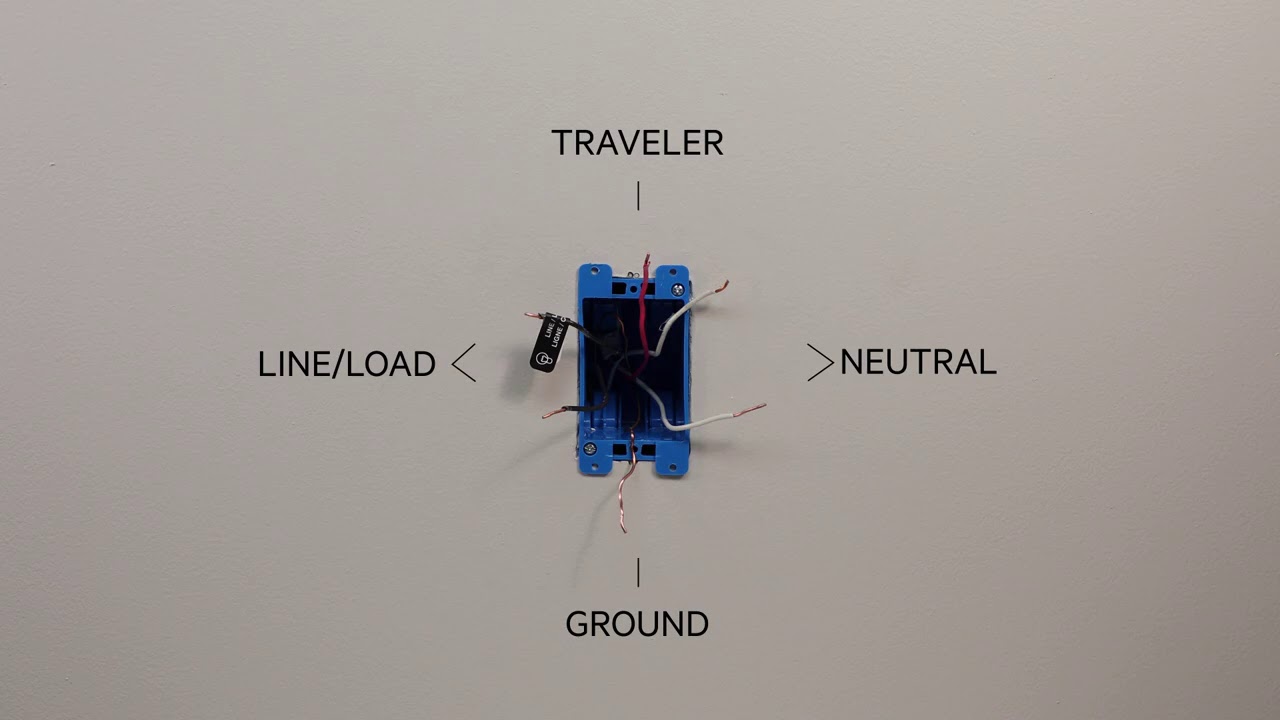

Step 3: Confirm that you have neutral wires in your gang box. These are typically white and are not connected to the light switch. A neutral wire is required to install your Wemo 3-Way Light Switch. If the neutral wire is not present, STOP the installation and consult a professional electrician.
NOTE: A ground wire is optional.
Step 4: Use your voltage tester to confirm that there is no power in the neutral wires from any neighboring circuits. If your voltage tester reads positive for voltage, additional circuits may need to turn OFF at your circuit breaker panel or fuse panel.
Step 5: Remove the incoming AC line/load wire coming from your circuit breaker panel or fuse panel. This wire is usually black but depending upon the wiring used, you may have a different wire color in your gang box.
QUICK TIP: Included in the package of your Wemo 3-Way Light Switch is a quick start guide with a black line/load sticker, which can be used to label the wire for future reference.
Step 6: Remove all other wires connected to the existing light switch to remove it from the wall. Any wire nuts that are connected to the wires such as the grounding wire or the neutral wire should be removed.
Installing the Wemo 3-Way Light Switch
Step 1: Remove the included faceplate from the Wemo 3-Way Light Switch. Peel off the safety sticker from the back of the Wemo 3-Way Light Switch to free the five wires in preparation for connecting to your in-wall wiring.
Step 2: Connect the BLACK line/load wire from the back of the Wemo 3-Way Light Switch to the wire you labeled earlier with the line/load sticker using a wire nut. This will supply power to your Wemo 3-Way Light Switch.
Step 3: Connect the BLUE traveler 1 and RED traveler 2 wires from the back of the Wemo 3-Way Light Switch to the traveler wires in your gang box. The colors of the traveler wires are usually red and black but you may have different wire colors in your gang box.
QUICK TIP: If you install a second Wemo 3-Way Light Switch into this circuit, take note of which wires you will use to ensure they match the connections on the second Light Switch. This will ensure proper operation of your Wemo 3-Way Light Switches.
Step 4: Connect the WHITE neutral wire from the back of the Wemo 3-Way Light Switch to the neutral wires in your gang box. The colors of the neutral wires are usually white but you may have a different wire color in your gang box.
NOTE: If you have a ground wire or ground screw in your gang box, it should be connected to the GREEN ground wire on the back of the Wemo 3-Way Light Switch. The ground wire is usually green or bare copper, but you may have a different wire color in your gang box. The ground wire is not required so if you do not have it, simply cap off the ground wire using a wire nut
NOTE: If you have a ground wire or ground screw in your gang box, it should be connected to the GREEN ground wire on the back of the Wemo 3-Way Light Switch. The ground wire is usually green or bare copper, but you may have a different wire color in your gang box. The ground wire is not required so if you do not have it, simply cap off the ground wire using a wire nut
Step 5: Installation is almost complete. Double-check that all connections are secure and then carefully tuck the wires back into your gang box behind the Wemo 3-Way Light Switch. Using the screws included with your Wemo 3-Way Light Switch, secure it to the gang box. Once you have secured the Wemo 3-Way Light Switch to the gang box, a faceplate can be installed. Simply snap on the included faceplate or attach your own custom decorative style faceplate.
QUICK TIP: If you will be using an iOS device such as an iPhone® or iPad® to set up your Wemo 3-Way Light Switch, take note of the Apple® HomeKit™ code before securing it to the gang box. You can find the HomeKit code in the following locations:
- at the front panel of the Wemo 3-Way Light Switch
- in the Quick Install Guide
Step 6: It’s now time to turn ON your Wemo 3-Way Light Switch. Return to your breaker panel or fuse box to turn the power back ON to the circuits you turned OFF before installation.
Step 7: Check your Wemo 3-Way Light Switch to confirm if it has been installed correctly and is receiving power. The status light on the front of the Wemo 3-Way Light Switch should blink WHITE while it is powering ON, and then it will turn BLUE when it is ready for setup.
Congratulations! Your Wemo 3-Way Light Switch is now installed and ready to be set up. For instructions on setting up your Wemo 3-Way Light Switch choose from the options below:
Setting up a Wemo 3-Way Light Switch using your iOS device
Setting up the Wemo 3-Way Light Switch using your Android device
If you would like to install a second Wemo 3-Way Light Switch into this circuit, simply follow these instructions again. Remember that the Wemo 3-Way Light Switch cannot replace a 4-Way light switch.
