Wiring your Wemo® Wi-Fi Smart Light Switch, F7C030

Electrical wirings should be done by a professional electrician.  So, if you are having trouble wiring the Wemo® Wi-Fi Smart Light Switch, F7C030,  we suggest that you contact a licensed electrician to:
  • Identify, cut or trim wires.
  • Install the Neutral wire (REQUIRED).  It may be dangerous or illegal to install if the neutral wire is not available.
  • Make sure you have a single pole light switch that is 2 inches deep.

IMPORTANT:  Do not attempt to install the Wemo Light Switch if you are not familiar with electrical wirings.  If you are located in Australia, Australian law requires that Wemo Light Switch be installed by a professional electrician such as Jim’s Electrical.  To learn more, visit www.jimselectrical.com.au.

User-added image

WARNING! THE FOLLOWING WIRING SCENARIOS MAY BE DANGEROUS OR ILLEGAL.

User-added image

User-added image

The Wemo Light Switch requires the following wiring to function properly:

User-added image




Wiring Tip 1:  Don't take shortcuts when wiring

Jamming the wrong wires together could cause your Wemo Light Switch to malfunction.

User-added image




Wiring Tip 2:  Keep the right wires together

Your Wemo Light Switch may have multiple wires attached to the light switch terminals and multiple wires for the Neutral.  Keep all the wires together as if they were a single wire.

NOTE:  If you can't get all the wires into the supplied wire nut, you may need to buy a larger wire nut from your local hardware store.


User-added image



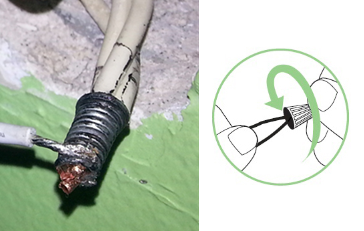

Wiring Tip 3:  Removing a crimp

Sometimes electricians use a crimp to connect wires instead of a wire nut.  These can be difficult to remove.  Most likely, you can remove the crimp by using pliers, but you may need to cut all the wires going into it, strip them and add a wire nut to connect the wires.

User-added image




Wiring Tip 4:  The Neutral wire is not cut

You may find that the Neutral wire is not cut.  Check to see if there's enough slack in the wire to pull it out from the box slightly.  If there isn't – do not cut the wire.

If there is enough slack in the wire:

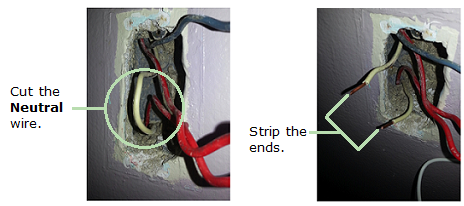

Step 1:  Cut the Neutral wire in half and strip the ends of the wire.

User-added image

Step 2:  Combine the wires with the Neutral wire from the Wemo Light Switch and join together with a wire nut.

User-added image

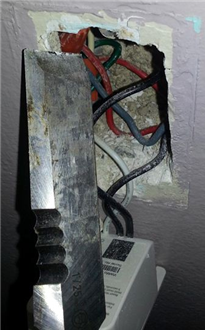

Wiring Tip 5:  The wall opening should be wide enough

In some cases you may need to use a knife or chisel to trim back the dry wall to install Wemo Light Switch.

User-added image
