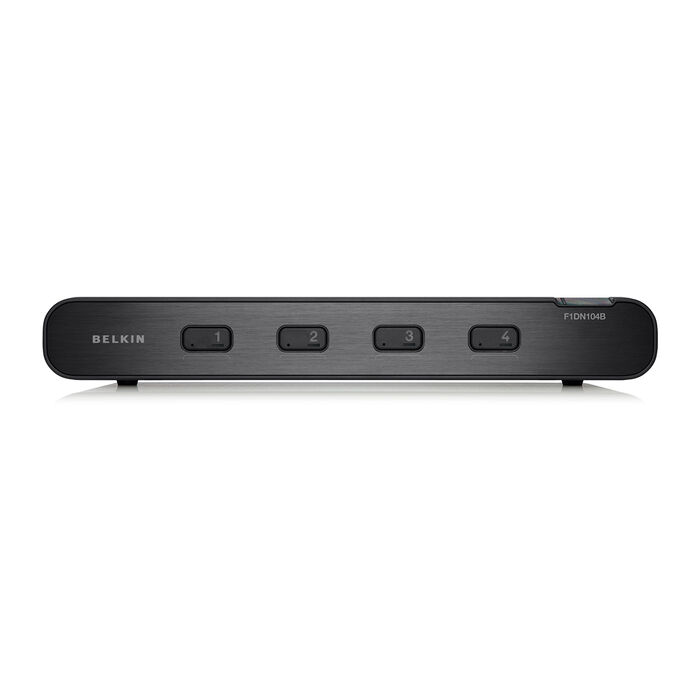

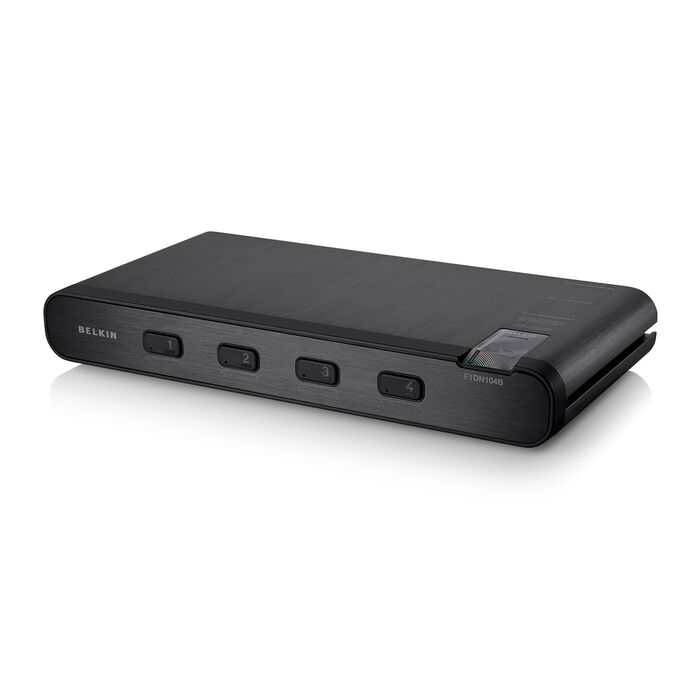

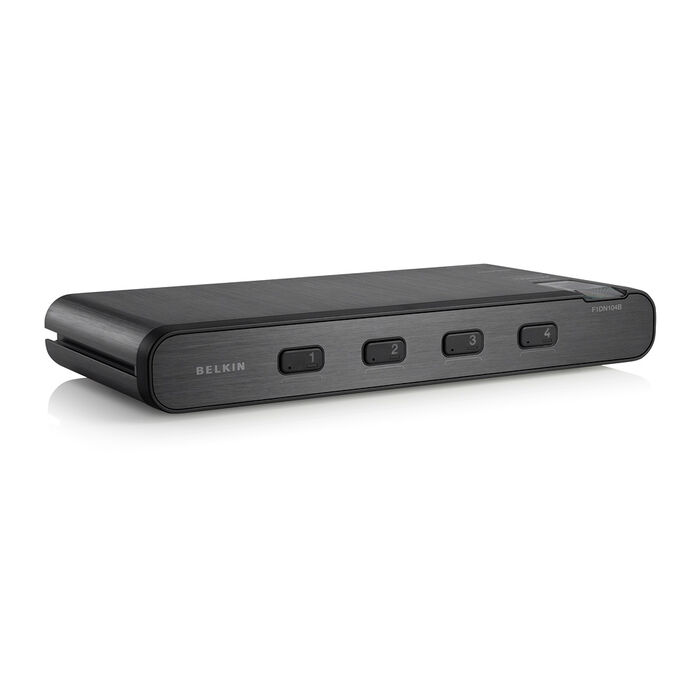

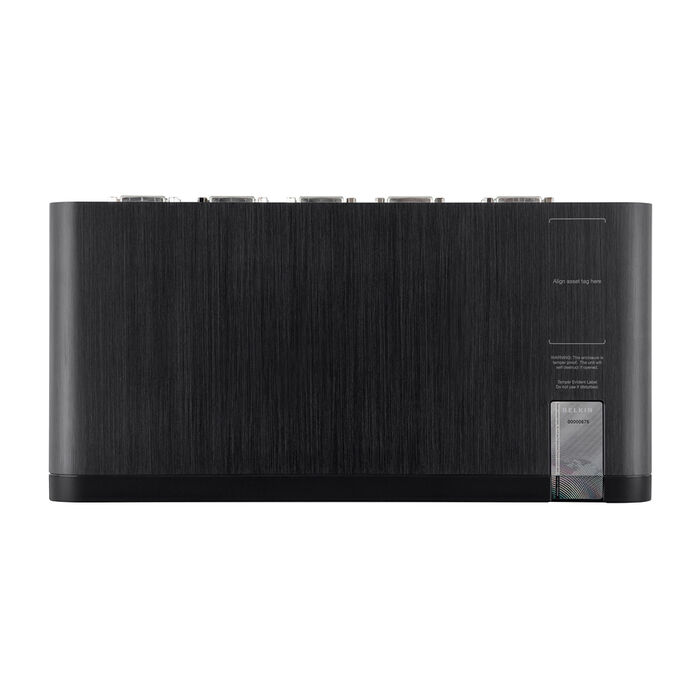

Secure DVI-I KVM Switch; 4-Port

SKU: P-F1DN104B-3
Secure DVI-I KVM Switch; 4-Port

Secure DVI-I KVM Switch; 4-Port

SKU: P-F1DN104B-3

Belkin's Secure DVI-I KVM Switch provides superior security and data protection by providing true data path isolation between systems and networks. They are fully compatible with legacy and new government systems and meet Common Criteria security requirements.

Belkin Secure DVI-I KVMs are designed, manufactured and certified to the latest NIAP Protection Profile Ver. 3.0 standard. The latest NIAP Protection Profile ensures agencies are receiving superior protection for keyboards, pointing devices, displays and audio. Using unidirectional data paths with optical diodes, they prevent peripherals from being used to leak information from one computer system to another.

Additional security is provided through the end-to-end tamper-proof system that prevents physical tampering, and the intuitive user interface reduces user-switching errors by providing clear identification.

The Belkin Secure DVI-I KVM Switch; 4-Port features support for up to four computers.

Expect the best compatibility out-of-the-gate with a Secure KVM solution that's designed and vigorously tested to work seamlessly with common systems and peripherals used by the defense and intelligence community.




Device Type: KVM / audio switch - 4 ports
Enclosure Type: Desktop
Ports: 4 x KVM / audio
Keyboard / Mouse Interface: PS/2, USB
Max Resolution: 3840 x 2160 pixels (UHD 4K) @ 30Hz, 2560 x 1600 pixels @ 60Hz
Status Indicators: Port status

Console Ports

1 x DVI-I Dual-Link Female
1 x keyboard (USB Type A)
1 x mouse (USB Type A)
1 x keyboard (PS/2)
1 x mouse (PS/2)
1 x audio output (3.5mm Jack)
1 x DCU Port (RJ14)

Host Ports

4 x DVI-I Dual-Link Female
4 x keyboard/mouse (USB Type B)
4 x audio input (3.5mm Jack)


12.5" (W) x 6.2" (D) x 1.9" (H)
Weight: 3.9 lbs


Power Device: External power adapter
Voltage: 100/240 VAC (+/- 10%), auto-ranging, 50/60Hz, 12VDC/1.5A output

Manufacturer Warranty

3 years service and parts

Environmental Parameters

Min Operating Temperature: 32°F
Max Operating Temperature: 104°F
Operating Humidity Range: 0-80%, non-condensing
Min Storage Temperature: -4°F
Max Storage Temperature: 140°F


Security Accreditation: NIAP Protection Profile Ver. 3.0
Regulatory Compliant Standards: FCC Class B, CE, UL, ICES



DVI-I, USB & Audio (Single Head)

DVI-D to DVI-D Cable

HDMI to DVI-D Single Link

DP to DVI-D w/ USB + Audio

DP to DVI-D w/ USB + Audio
