Secure DVI-I KVM Switch, 16-Port with CAC

SKU: P-F1DN116C-3
Secure DVI-I KVM Switch, 16-Port with CAC

Secure DVI-I KVM Switch, 16-Port with CAC

SKU: P-F1DN116C-3

Belkin Secure DVI-I KVM Switches provide superior security and data protection by providing true data path isolation between systems and networks. They are fully compatible with legacy and new government systems and meet Common Criteria security requirements.

Belkin Secure DVI-I KVMs are designed, manufactured and certified to the latest NIAP Protection Profile Ver. 3.0 standard. The latest NIAP Protection Profile ensures agencies are receiving superior protection for keyboards, pointing devices, displays and audio. Using unidirectional data paths with optical diodes, they prevent peripherals from being used to leak information from one computer system to another.

Additional security is provided through the end-to-end tamper-proof system that prevents physical tampering, and the intuitive user interface reduces user-switching errors by providing clear identification.

The Belkin Secure DVI-I KVM supports a CAC reader and up to sixteen host computers.

Expect the best compatibility out-of-the-gate with a Secure KVM solution that's designed and vigorously tested to work seamlessly with common systems and peripherals used by the defense and intelligence community.




Device Type: 16-Port, DVI-I Secure KVM with CAC
Enclosure Type: Desktop with Rack Mount Accessories
Video Ports: 16 x Input, 1x Output
Keyboard/Mouse: PS/2, USB
Max Resolution 3840x2160 pixels (UHD 4K) @ 30Hz, 2560x1600 @ 60Hz

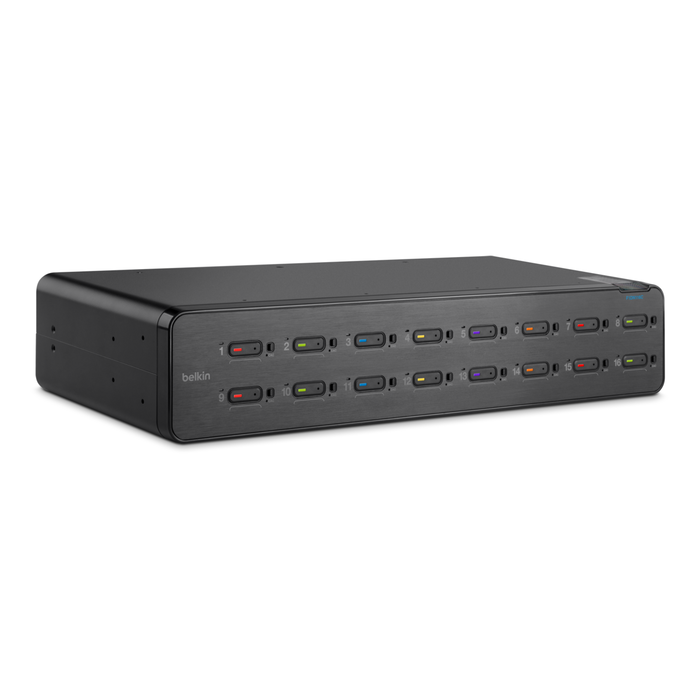

Status Indicators: Port Status LEDs
Common Access Card (CAC) reader support

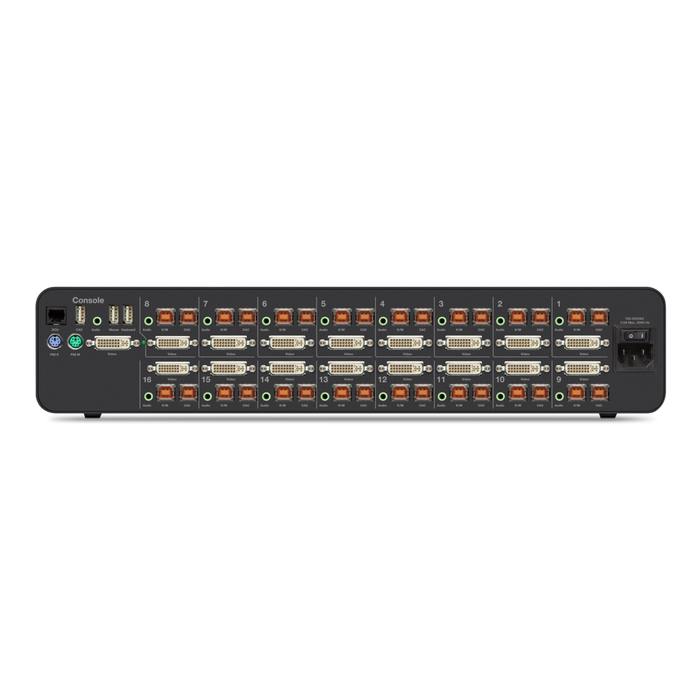

Console Ports

1x DVI-I Dual-Link Female
1x keyboard (USB Type A)
1x mouse (USB Type A)
1x keyboard (PS/2)
1x mouse (PS/2)
1x audio output (3.5mm jack)
1x CAC Port (USB Type A)
1x DCU Port (RJ14)

Host Ports

16x DVI-I Dual-Link Female
16x keyboard/mouse (USB Type B)
16x audio input (3.5mm Jack)
16x CAC Port (USB Type B)


17.3" (W) x 7.8" (D) x 3.5" (H)
Weight: 13.9 lbs


Power Device: Internal power supply
Voltage: 100/240 VAC (+/- 10%), auto-ranging, 50/60Hz, 0.9A

Manufacturer Warranty

3 years service and parts

Environmental Parameters

Min Operating Temperature: 32°F
Max Operating Temperature: 104°F
Operating Humidity Range: 0-80%, non-condensing
Min Storage Temperature: -4°F
Max Storage Temperature: 140°F


Security Accreditation: NIAP Protection Profile Ver. 3.0
Regulatory Compliant Standards: FCC Class B, CE, UL, ICES


KVM Connection


DVI-I, USB & Audio (Single Head)

DVI-D to DVI-D Cable

DP to DVI-D w/ USB + Audio

HDMI to DVI-D Single Link
