Cybersecurity and Secure KVM

Universal 2nd Gen Secure KVM Switch w/ CAC

SKU: F1DN102KVM-UN-4

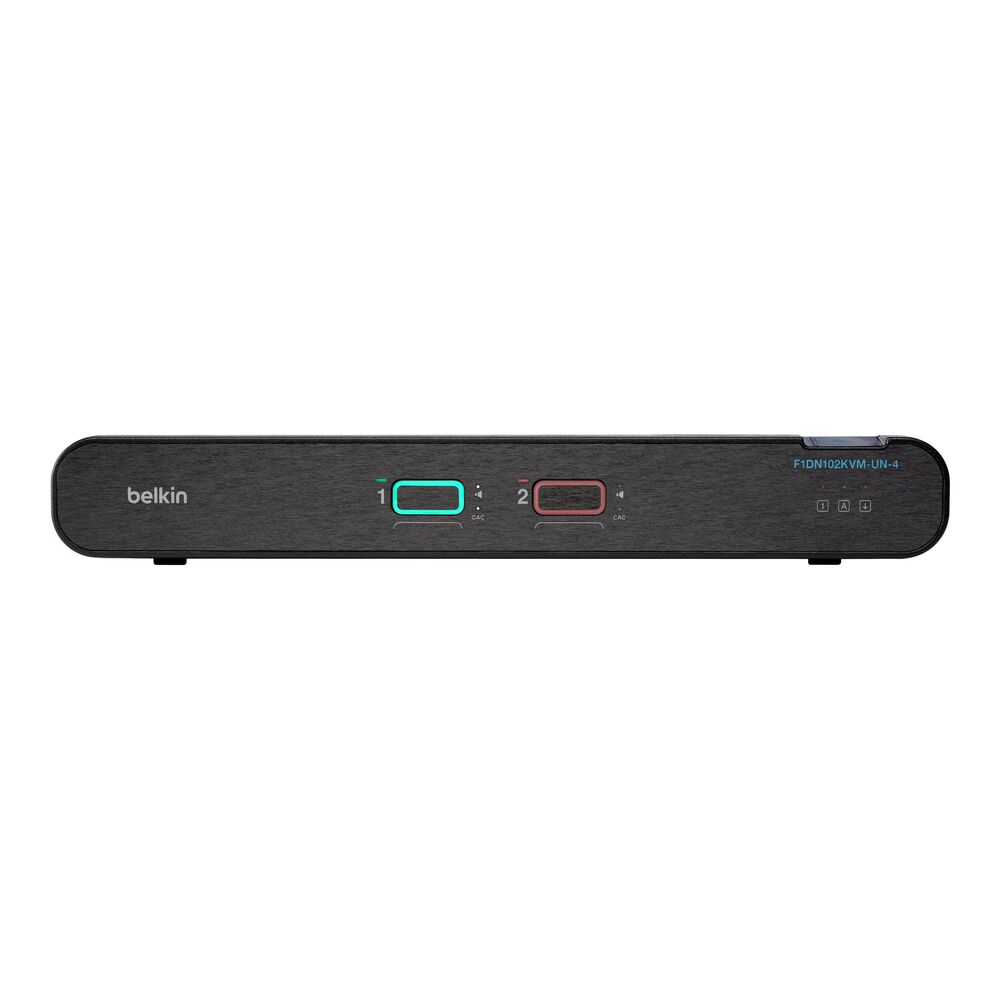

Universal 2nd Gen Secure KVM Switch w/ CAC, Black, hi-res

Cybersecurity and Secure KVM

Universal 2nd Gen Secure KVM Switch w/ CAC

Cybersecurity and Secure KVM

Universal 2nd Gen Secure KVM Switch w/ CAC

SKU: F1DN102KVM-UN-4

Belkin Universal 2nd Gen Secure KVM Switch

Find a Reseller

Belkin F1DN102KVM-UN-4 Universal 2nd Gen 2-Port, Single Monitor KVM Switch
12V, 2.5A Universal Power Supply with Worldwide Adaptors
Port Naming Labels
Quick Start Guide and Compliance Documentation

Designed for NIAP Protection Profile PSD 4.0 Compliance
Combo connector video support for up to 4K (3840x2160), @60hz refresh
Compatible with the Belkin Secure KVM Remote Control with Integrated Keyboard (Optional)
Customizable port coloring and naming on the front panel: Facilitates port identification and reduces user switching errors. Color coding mimicked by Belkin KVM Remote Control with Integrated Keyboard
Extrusion form factor that supports an under-counter mount (Optional)
Supports TAA combo and video cables for easy deployment
Supports up to two host computers
Supports one display for the user
CAC and Audio freeze functionality
Dedicated processors with emulators for every port: Isolated port paths for video, audio, and peripherals prevent data leaks between computers
Unidirectional data paths: Optical data diodes prevent peripherals from being used to breach systems
Display security: Protected display interface prevents data leakage via the monitor
Analog audio via 3.5mm jack with ultrasonic audio filtering
Peripheral management: USB device detection prevents unauthorized peripheral usage
Active Anti-tampering and Secure labeling: Holographic tamper-evident product label provides visual indication and prevention of tampering
Fast switching: No keyboard or mouse delays when switching ports, minimal video delay
Secure packaging: Tamper-evident packaging ensures product is not tampered with during transport

Certifications

FCC Class A UL CE RoHS ICES RCM

Console Ports

1, Single Monitor

Display Connection

DisplayPort/HDMI

Display Type

DP/HDMI

Form Factor

Desktop

Host Ports

Keyboard Input

Keyboard/Mouse Connections

Keyboard Type

KVM Maximum Resolution Supported

4K@60hz

Local Console Interfaces

1, Single Monitor

Maximum Resolution

4k@60hz

Mouse Input

Mouse Type

PC Ports

Power Rating

12VDC 2.5A

Power Supply Included

Power Supply Type

External

Remote Control Included

Supported Audio Formats

3.5mm Analog

Supported Video Formats

DipsplayPort/HDMI

TAA Compliant

Ports

CaC/DPP, Computers, Keyboard, Monitors, Mouse, Remote
