How to connect the Wemo® Mini Smart Plug, F7C063 to the Apple Home app

The Wemo® Mini Smart Plug, F7C063 supports Apple® HomeKit™ which means you can control your Wemo Mini using the Apple Home app.  This article will guide you on connecting your Wemo Mini to the Apple Home app.

Before you begin:
  • Your iOS device must be connected to the same Wi-Fi as your Wemo Mini to do the initial connection with the Apple Home app.
  • Determine if you have 1st or 2nd gen Wemo Mini.  Does your Wemo Mini have a HomeKit code sticker on the back?

  • No - 1st gen
The HomeKit code for 1st gen Wemo Mini can be found on the Wemo App.  For instructions on how to locate this, click here.

User-added image

  • Yes - 2nd gen

User-added image

 1st Gen2nd Gen
Do I need the latest Wemo App? Yes, the Wemo App is required for initial setup.Optional, if you will be using the Apple Home app to manage your Wemo Mini.  However, in order to receive firmware updates, the Wemo App is required.
Do I need to download the latest Apple Home app?Yes, required if you will be using the Apple Home app to manage the Wemo Mini.Yes, required if you will be using the Apple Home app to manage the Wemo Mini.
Do I need to enable Home Data permission for the Wemo App?Yes, required for the Apple Home app.  To know how, click here.Yes, required for the Apple Home app.  To know how, click here.
Can I use the Apple Home app to do the initial setup?No.  You must use the Wemo App first to set it up and then you can connect it to the Apple Home app.  To set it up first, click here.Yes.  You can add it as an accessory.  This will include setup and connecting it to the Apple Home app.
Do I need a firmware update that supports Apple HomeKit?Yes.  Your Wemo Mini should have a firmware version of 2.00.11143 or later.  The Wemo App will prompt you if you need a firmware update.No.  The 2nd gen Wemo Mini supports Apple HomeKit right out of the box.

Connecting the Wemo Mini with the Apple Home app

These steps apply to both 1st and 2nd gen Wemo Mini.

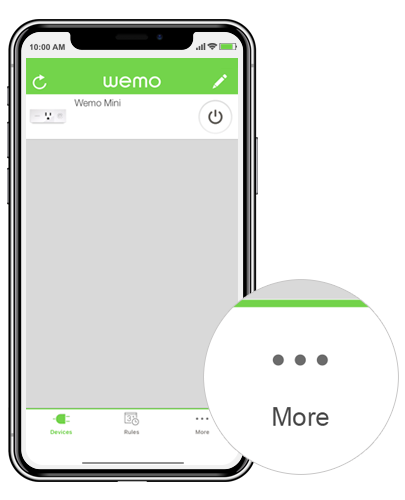

Step 1:  Launch the User-added image App then go to the More tab.

User-added image

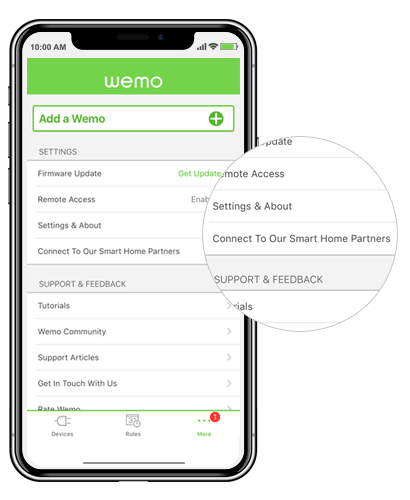

Step 2:  Select Connect To Our Smart Home Partners.

User-added image

NOTE:  If a pop-up message appears saying Wemo Would Like to Access Your Home Data, select OK.

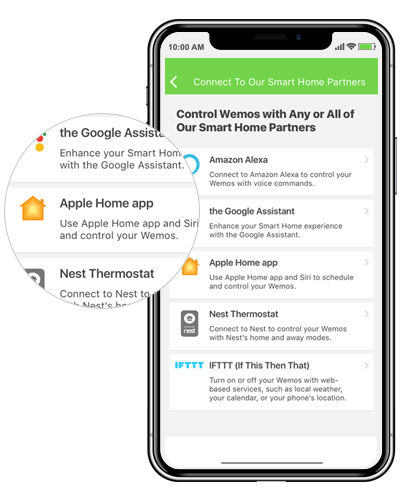

Step 3:  Tap Apple Home app.


User-added image

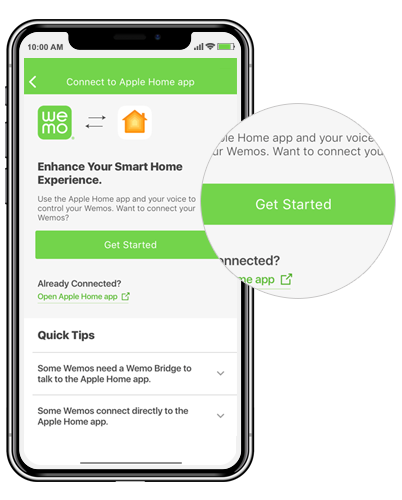

Step 4:  Tap on Get Started.

User-added image

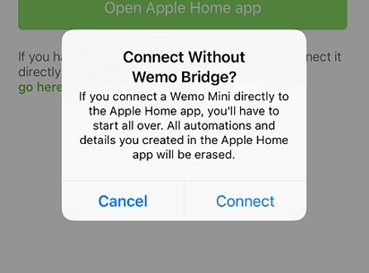

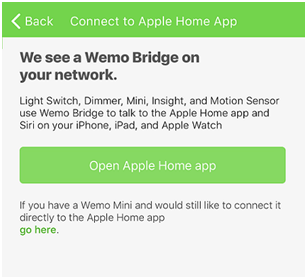

NOTE:  If you have a Wemo Bridge on the same Wi-Fi and your Wemo Mini was associated to it via the Apple Home app, the Wemo App will automatically detect the Wemo Bridge.  You will have the option to disconnect the Wemo Mini from the Wemo Bridge and manage the Wemo Mini on its own using the Apple Home app by tapping on go here.  This will directly connect your Wemo Mini with the Apple Home app.  If you connect a Wemo Mini directly to the Apple Home app, you’ll have to reconfigure any settings on the Wemo Mini with the Apple Home app.  All automations and details you previously created for the Wemo Mini in the Apple Home app will be erased.  If you would like to leave your Wemo Mini connected to the Apple Home app through the Wemo Bridge, just tap Open Apple Home app then select Connect.

User-added image

User-added image

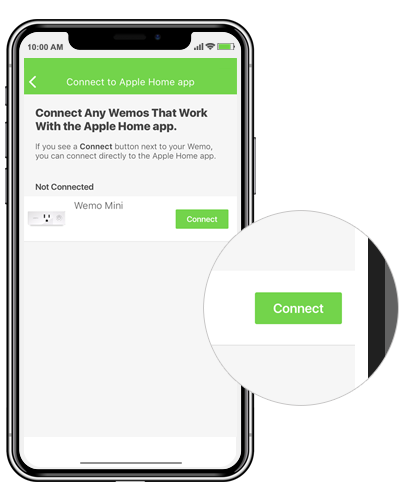

Step 5:  Tap the Connect button beside the Wemo Mini you want to connect to the Apple Home app.

User-added image

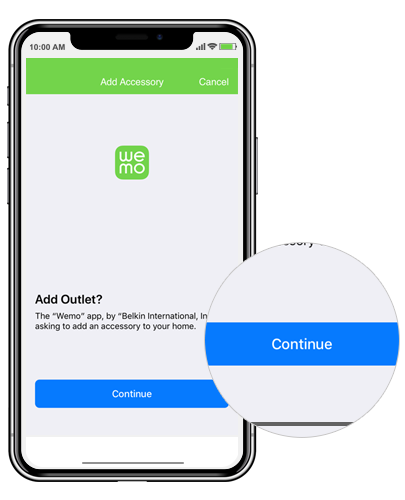

Step 6:  Tap Continue.

User-added image

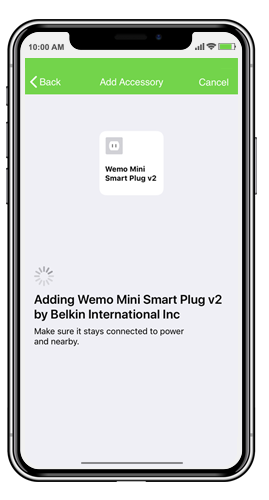

It will then connect and add the Wemo Mini to the Apple Home app.

User-added image

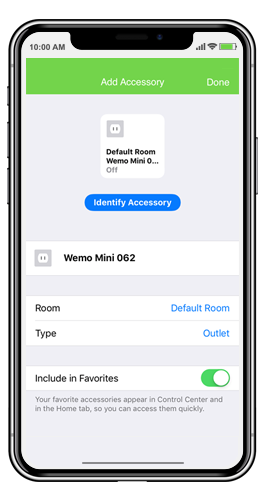

Step 7:  You can personalize your newly-connected Wemo Mini's name, Room, and Type, among others.  When you're finished, tap Done.

User-added image

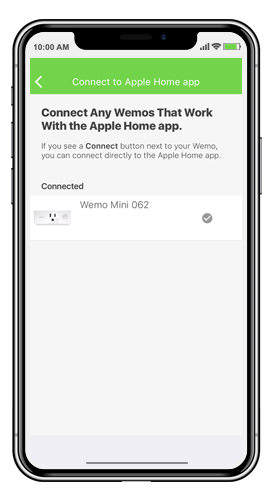

You have now successfully connected your Wemo Mini to the Apple Home app.

User-added image

If you have more Wemo Mini to add, just go back to the Wemo App and tap Connect for the remaining Wemo Mini and repeat the steps.

Adding an accessory using the Apple Home app

These steps only apply for the 2nd gen Wemo Mini.  You may need to write down the HomeKit code located on the back of the Wemo Mini if you are unable to scan the code during adding the accessory.

NOTE:  Before setting up the Wemo Mini, make sure that the HomeKit Accessory Protocol (HAP) is still enabled.  You'll know that this is still enabled because the Wemo Wi-Fi name or Wemo ID shows up under SET UP NEW DEVICE... section on the Wi-Fi settings.  HAP is only active for 15 minutes.  If it's no longer active, you may have to restart the Wemo Mini.

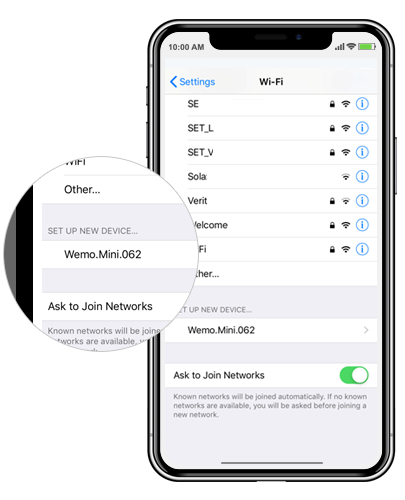

Step 1:  Go to the Wi-Fi settings of your iOS device.  Under the SET UP NEW DEVICE... section, tap the Wemo ID.

User-added image

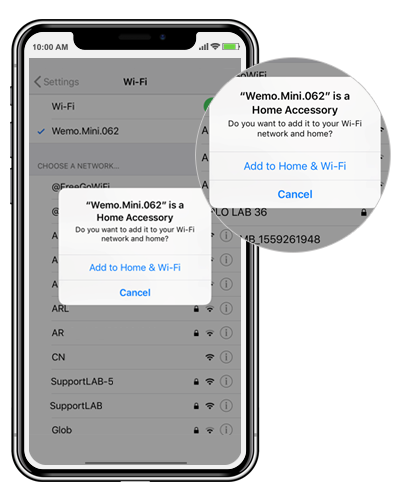

Step 2:  Tap Add to Home & Wi-Fi and it will redirect to the Apple Home app.

User-added image

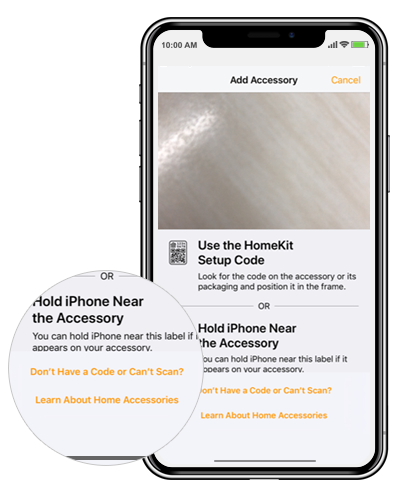

Step 3:  Use the camera to scan the code located on the back of the Wemo Mini.  You can also enter the code manually by tapping on the Don't Have a Code or Can't Scan? link.  Do not unplug the Wemo Mini during this step as setup will fail.

User-added image

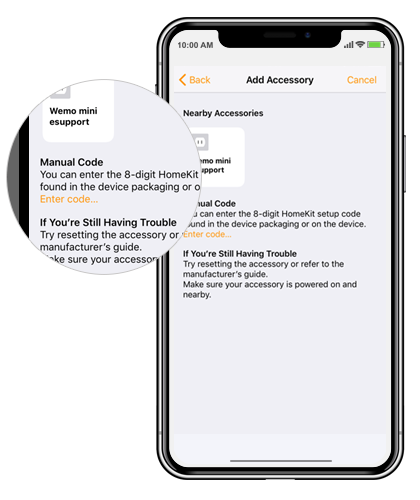

Step 4:  Tap Enter code... to enter the Apple HomeKit code.

User-added image

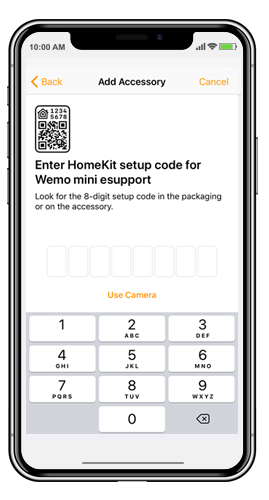

Step 5:  Enter the eight-digit Apple HomeKit code of your Wemo device.

User-added image

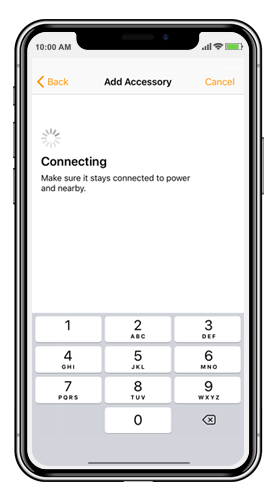

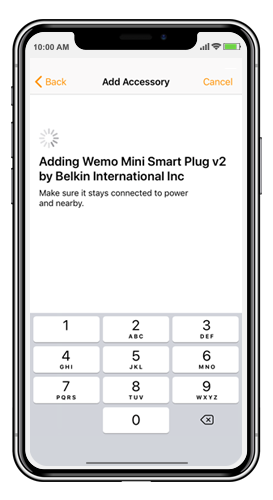

It will then connect and add the Wemo Mini to the Apple Home app.

User-added image

User-added image

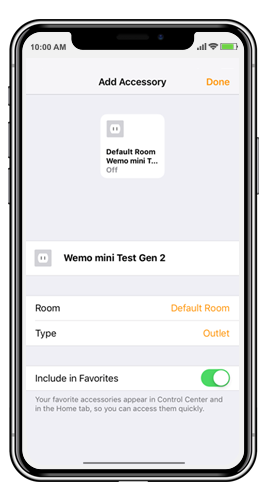

Step 6:  You can personalize your newly-connected Wemo Mini's name, Room, and Type, among others.  When you're finished, tap Done.

User-added image

Your Wemo Mini is now connected to your Apple Home app.  You can also open the Wemo App and it’s ready to use.
