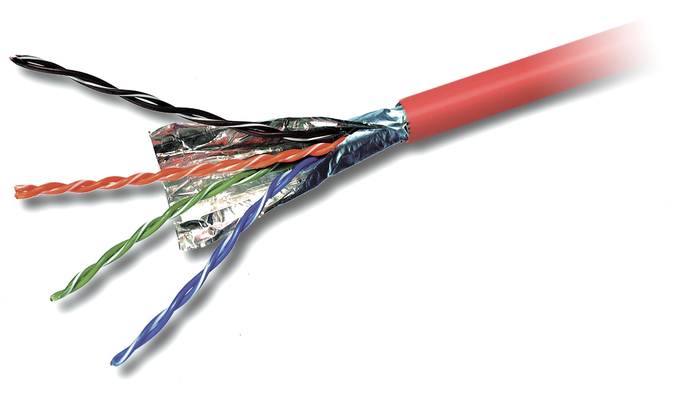

CAT5e Stranded Bulk Cable, Shielded
SKU: P-R7J304-H
null
Fast and free shipping
90-Day money back guarantee
24/7 Customer support
CAT5e Stranded Bulk Cable, Shielded
null
Characteristic Impedence
- 100±15Ω @ 1 ~ 100MHz
Conductor Construction
- Bare Stranded Copper
Conductor Resistance
- 143Ω/km/20°C max
Conductor Size
- 26AWG x 4pairs
Dielectric Strength
- AC 1.75kV/0.15sec
Flame Retardant Test
- CM
Insulation Material
- HDPE
Jacket Diameter
- 5.8±0.3mm
Jacket Material
- PVC
Mutual Capacitance
- 56pF/m max
Propagation Delay
- 538nS/100m max @ 100MHz
Spark Test
- AC 1.75kV/0.15sec
Standards Compliance
- ISO/IEC 11801; TIA/EIA-568-B.2
Structural Return Loss
- 19.0dB min at 100MHz
Belkin CAT5e Stranded Bulk Cable, Shielded
